Mueller Streamline AP17862C Cyclemaster Ball Valve 5/8 in A 17842

Product Description

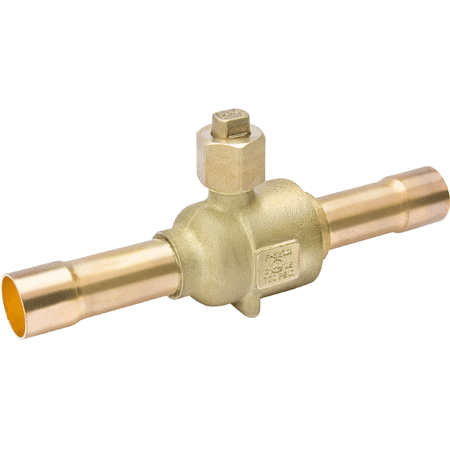

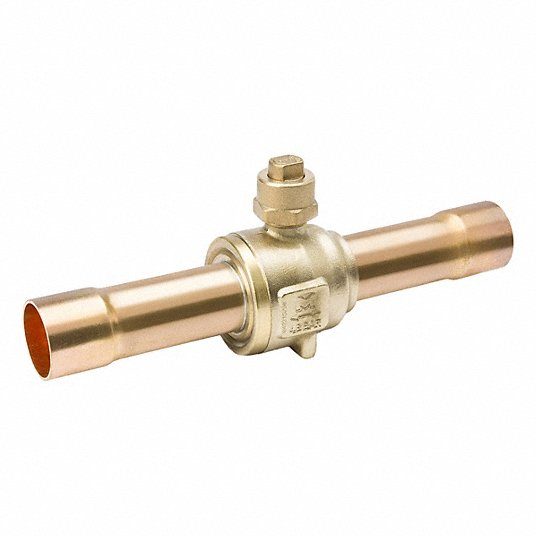

The MUELLER STREAMLINE AP17862C Cyclemaster Ball Valve is a standard refrigerant ball valve with a 5/8 in female sweat connection. It features bare copper tubing ends, making it solderable into HVAC systems. It has a maximum operating pressure of 775 psi and an operating temperature range of -40 °F to 300 °F.

• Sweat connection for easy installation
• Bare copper tubing ends are solderable
• Suitable for HVAC systems

Product Highlights

This Cyclemaster ball valve features a sweat connection, bare copper tubing ends, and is solderable for HVAC systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: AP17862C
• Country of Origin: China

Technical Specifications

• Connection Size: 5/8 in
• Cv: 12.10
• Kv: 10
• Port: 0.50 in
• MAP: 775 psi
• Operating Temperature [Min]: -40 ºF
• Operating Temperature [Max]: 300 ºF
• Reference Indication: Standard product offering includes drilled/ tapped feature
• A: 6.35 in
• B: 3.41 in
• C Min: 0.5 in
• D: 0.54 in
• E: 2.23 in
• G: 0.87 in
• H: M4 X 0.7
• Brand: MUELLER
• Manufacturer Part Number: AP17862C
• Product Type: Refrigerant Ball Valve
• Includes Access Port: Access Port Not Included
• Includes Relief Port: Relief Port Not Included
• Inlet Connection Size: 5/8 in
• Inlet Connection Gender: Female
• Inlet Connection Type: Sweat
• Outlet Connection Size: 5/8 in
• Outlet Connection Gender: Female
• Outlet Connection Type: Sweat
• Port Size: 0.5 in
• Coefficient of Volume (Cv): 12.1
• Minimum Operating Pressure: 0 psi
• Maximum Operating Pressure: 775 psi
• Operating Temperature - Minimum: -40 °F
• Operating Temperature - Maximum: 300 °F
• Includes Mounting Holes: Mounting Holes Included
• Mounting Hole Size: M4 x 0.7
• Mounting Hole Type: Metric
• Mounting Hole-to-Hole Distance: 0.9 in
• Adjustment Method: Wrench
• A2L Compatibility: A2L Compatible
• Connection Material: Copper
• For Refrigerant Group: CFC; HCFC; HFC; HFO
• Overall Height: 2.2 in
• Overall Width: 1.2 in
• Overall Length: 6.4 in
• Standards: Pressure Equipment Directive 2014/68/EU2014/68/EU; UL/cUL Listed
• Access Port: No
• Relief Port: No
• Connection Ends: Solder
• Material: Brass
• Series: CYCLEMASTER
• Size: 5/8"
