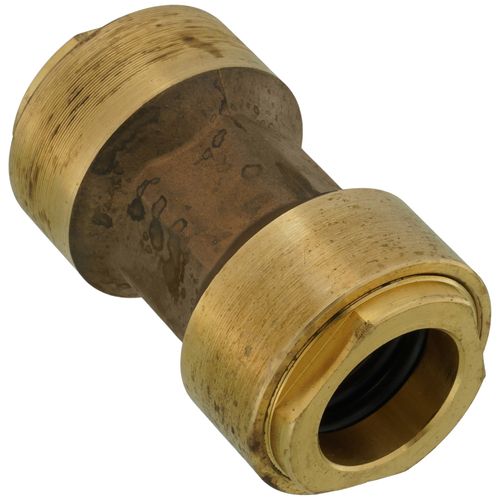

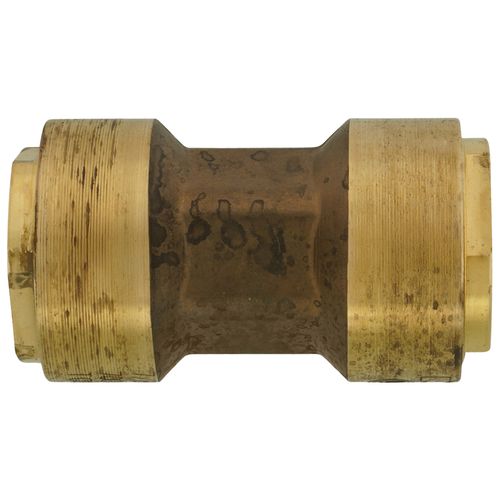

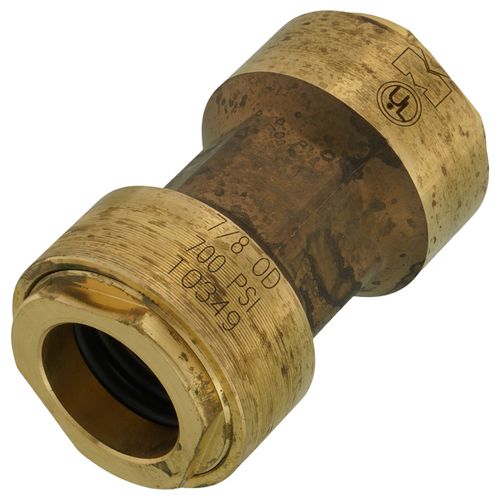

Mueller Streamline ACP10146 Refrigerant Brass Push Coupling 7/8 inches OD

Product Description

The MUELLER STREAMLINE ACP10146 is a refrigerant brass push coupling designed for air conditioning and mechanical applications. Available in a 7/8" outside diameter, this non-removable coupling permanently joins ASTM B280 and ASTM B88 hard-drawn copper tube (Types ACR, K, L) as well as ASTM B280 and ASTM B1003 soft (annealed) copper tube.

• Made of brass material.
• Features push-fit x push-fit connection.
• Designed and tested to 700 PSI performance.

Product Highlights

This brass push coupling provides a tool-free and flame-free solution for quick and dependable air conditioning system installs and repairs.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ACP10146
• Country of Origin: USA

Technical Specifications

• Product Type: Coupling
• Connection Type: Push-Fit x Push-Fit
• Material: Brass
• Size: 7/8"
• Continuous Operating Pressure: 700 PSI / 48 BAR Max
• Continuous Operating Temp: -40°F / -40°C to 250°F / 121°C
• Sealing Ring Temp Rating: -40°F / -40°C to 300°F / 149°C
• Approved Applications: Air Conditioning, Heat Pump, Mini-Split Systems, VRF and VRV, Non-Potable Water, Technical / Inert Gases
• Approved Substances: Refrigerants: R-125, R-134a, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-427A, R-438A, R-444A, R-447A, R-447B, R-448A, R-449A, R-450A, R-452A, R-452B, R-452C, R-454A, R-454B, R-454C, R-457A, R-459A, R-507A, R-513A, R-513B, R-718, R-1234ze, R-1234yf, R-290, R-600A Not compatible with R-22 Oils: Mineral Oil, POE, PVE, PAO, PAG, AB
• Burst Pressure: >3x MAX Operating Pressure, 2100 PSI / 144 BAR
• Vacuum Pressure Capability: 200 microns
• Helium Leak Tightness: ≤ 7.5 x 10-7 Pa · m3/s at +20°C and 10 BAR
• Fitting / Connector Type: Coupling
• Nominal Size: 7/8 in
• Manufacturer: Mueller Industries
• Manufacturer #: ACP10146
• Pressure Rating: 700 psi
• Series: Streamline
• Temperature Rating: -40 to 250 deg F
• End Style: Push
