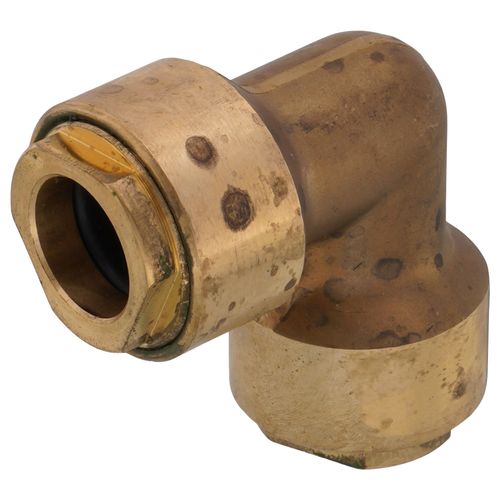

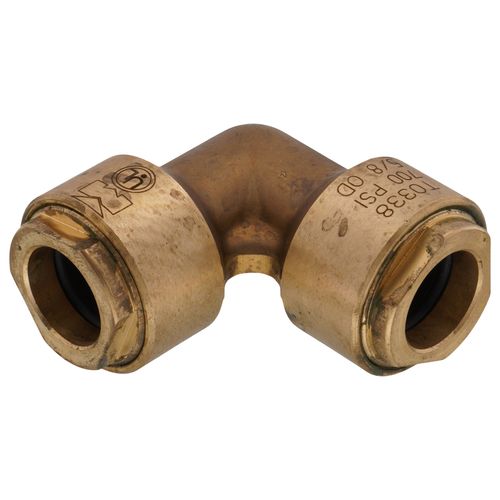

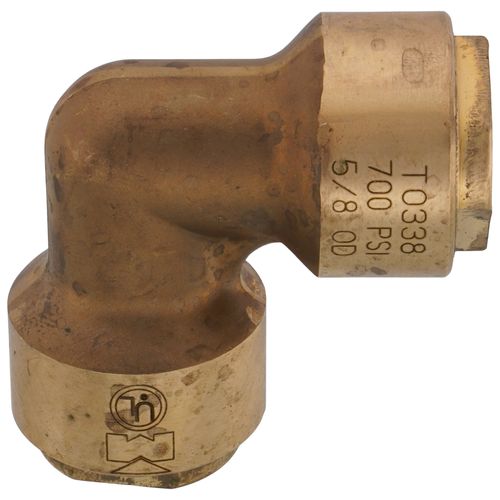

Mueller Streamline ACP02722 Refrigerant Brass Push 90-Degree Elbow 5/8 inches OD

Product Description

The MUELLER STREAMLINE ACP02722 is a refrigerant brass push fitting 90-degree elbow designed for air conditioning and mechanical applications. Available in a 5/8" outside diameter, this fitting permanently joins ASTM B280 and ASTM B88 hard-drawn copper tube (Types ACR, K, L) as well as ASTM B280 and ASTM B1003 soft (annealed) copper tube.

• Tool-free and flame-free connections.
• Patented push-fit technology designed for common air conditioning and heat pump installs and repairs
• Designed and tested to 700 PSI performance

Product Highlights

This brass push fitting provides a simple and hassle-free means of joining copper AC systems with reliability. It features BackBite Grip Ring Technology and double o-ring sealing.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ACP02722
• Country of Origin: USA

Technical Specifications

• Product Type: Elbow
• Connection Type: Push-Fit x Push-Fit
• Size: 5/8"
• Material: Brass
• Continuous Operating Pressure: 700 PSI / 48 BAR Max
• Continuous Operating Temp: -40°F / -40°C to 250°F / 121°C
• Sealing Ring Temp Rating: -40°F / -40°C to 300°F / 149°C
• Vacuum Pressure Capability: 200 microns
• Helium Leak Tightness: ≤ 7.5 x 10-7 Pa · m3/s at +20°C and 10 BAR
• MPN: ACP02722
• UPC: 685768452997
• Country of Origin: United States
• Fitting Type: 90 deg Elbow
• Material Construction: Brass
• Pressure Rating: 700 psi
• Temperature Rating: -40 to 250 deg F
• Tube OD: 5/8 in
• Connection Type 1: Push-Fit
• Connection Type 2: Push
