Mueller Streamline ACP02716 Refrigerant Brass Push 90-Degree Elbow 3/8 inches OD

Product Description

The Mueller Streamline ACP02716 refrigerant brass push fitting is designed for air conditioning and mechanical applications. Available in a 3/8" outside diameter, this non-removable elbow permanently joins ASTM B280 and ASTM B88 hard-drawn copper tube (Types ACR, K, L) as well as ASTM B280 and ASTM B1003 soft (annealed) copper tube.

• Patented push-fit technology designed for common air conditioning and heat pump installs and repairs
• Allows for permanent tool-free and flame-free connections
• Available in diameters from 1/4″ – 7/8” O.D.

Product Highlights

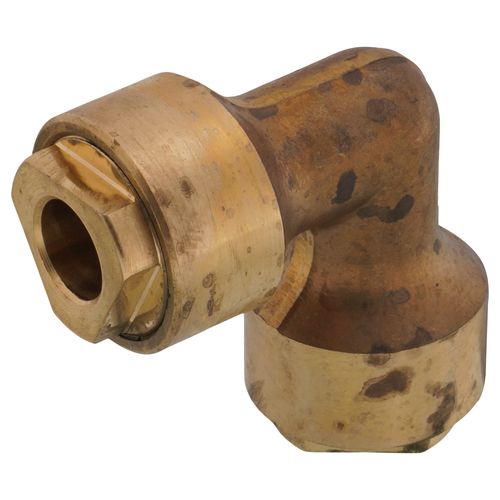

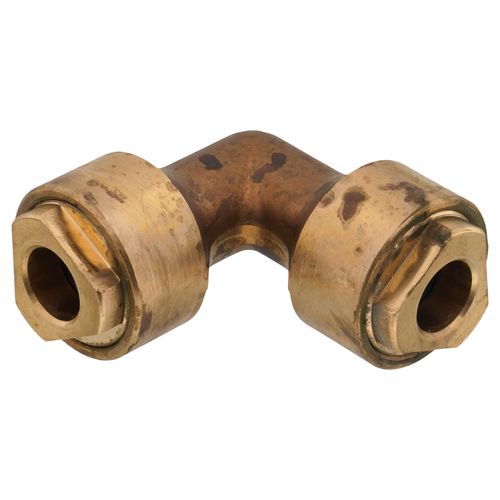

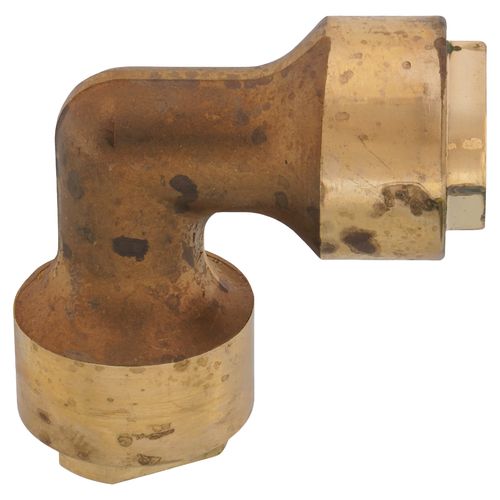

This 90-degree elbow fitting features push-fit x push-fit connection and is made of brass. It is designed and tested to 700 PSI performance.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ACP02716
• Country of Origin: USA

Technical Specifications

• Material: Brass
• Connection Type: Push-Fit|Push-Fit
• Product Type: Elbow
• Size: 3/8"
• Continuous Operating Pressure: 700 PSI / 48 BAR Max
• Continuous Operating Temp: -40°F / -40°C to 250°F / 121°C
• Sealing Ring Temp Rating: -40°F / -40°C to 300°F / 149°C
• Vacuum Pressure Capability: 200 microns
• Helium Leak Tightness: ≤ 7.5 x 10-7 Pa ∙ m3/s at +20°C and 10 BAR
• MPN: ACP02716
• UPC: 685768452973
• Country of Origin: United States
• Category: Business & Industrial
• End Style: Push
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 3/8 in
• Pressure Rating: 700 psi
• Series: ACP
• Temperature Rating: 250 deg F
• Connection Type 1: Push-Fit
• Connection Type 2: Push
• Fitting Type: 90 deg Elbow
• Material Construction: Brass
• Tube OD: 3/8 in
