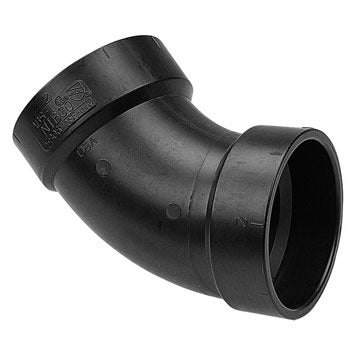

Mueller Streamline ABSBEND184 Abs Dwv 45 Deg Elbow 4 in

Product Description

The MUELLER STREAMLINE ABSBEND184 is a 4-inch ABS DWV 45-degree elbow fitting used in drain, waste, and vent piping systems. It connects two sections of ABS pipe at a 45-degree angle using hub-by-hub (H x H) connections, allowing for directional changes in drainage runs without sharp turns. Licensed plumbers install this fitting in residential and light commercial drain lines where ABS plastic pipe is specified. The hub connections accept standard 4-inch ABS pipe and are solvent-welded for a permanent, leak-resistant joint.

This elbow is suited for underground, in-wall, and above-slab DWV applications. It handles drain and waste flow as well as vent stack connections in 4-inch diameter systems. The 45-degree angle is commonly used when routing drain lines around structural obstructions or transitioning between vertical and angled runs. ABS fittings of this type are a standard choice in residential new construction and renovation plumbing where local codes permit ABS DWV systems.

Key Features

• 45-degree sweep angle allows smooth directional changes in DWV drain runs
• Hub x Hub (H x H) end connections accept standard 4-inch ABS pipe with solvent cement
• ABS plastic construction is lightweight and resistant to household drain chemicals
• Designed for drain, waste, and vent (DWV) service — not for pressure applications

Compatibility

Designed as an OEM-style replacement and standard-use fitting for residential and light commercial ABS DWV piping systems using 4-inch diameter ABS pipe.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and ensure the drain line is clear before cutting into an existing system. Clean and dry pipe ends before applying ABS solvent cement to both the pipe and hub socket. ABS solvent cement sets quickly — align the fitting immediately upon joining and hold for the manufacturer-recommended cure time before returning the line to service.

Technical Specifications

• Pipe Size: 4 inches
• Fitting Angle: 45 degrees
• End Connections: Hub x Hub (H x H)
• Material: ABS Plastic
• Service Type: DWV (Drain, Waste, Vent)

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ABSBEND184
