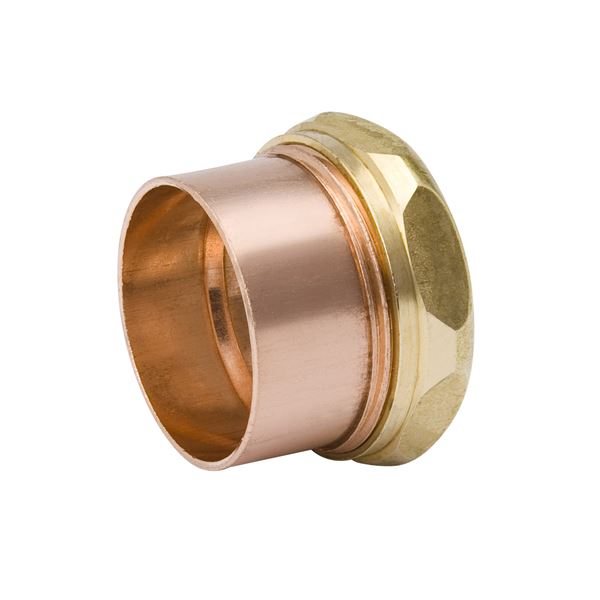

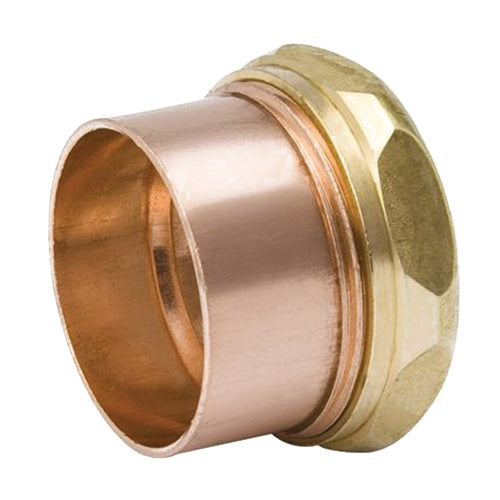

Mueller Streamline A11383 Adapter Fitting 1-1/2 Inch x 1-1/4 Inch

Product Description

The MUELLER STREAMLINE A11383 adapter fitting is a reducing trap designed for non-pressurized DWV sanitary systems. Constructed from UNS C12200 copper with a female soldered x solder joint end connection. It conforms to ASME B16.22/23/29/B1.20.1, MSS SP104, and NSF/ANSI 61G standards. The adapter has a Size A of 1-1/2 Inch and Size B of 1-1/4 Inch.

• Lead-Free
• Female Soldered x Solder Joint End Connection
• Suitable for Non-Pressurized DWV Sanitary System

Product Highlights

This Mueller Streamline adapter fitting is ideal for DWV plumbing applications, ensuring a secure and compliant connection in sanitary systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A11383

Technical Specifications

• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System
• End Connection: Female Soldered x Solder Joint
• Material: WROT COPPER
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Size A: 1-1/2 Inch
• Size B: 1-1/4 Inch
• Type: Reducing, Trap
• Outer Diameter: 1-5/8 Inch
• End Type: C - Cup (Female Solder)
• End Size: 1 1/2 in
• Second End Type: SJ - Slip Joint
• Second End Size: 1 1/4 in
• Standards: ASME B16.23, ASME B16.29
• Overall Length: 1.37 in
• Overall Height: 1.93 in
• Overall Width: 1.75 in
• Style: DW-724
• Application Type: DWV
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: Adapter
• Nominal Size: 1-1/2 x 1-1/4 In
• Connection Size: 1-1/2 x 1-1/4 in
• Connection Type: Female Solder Cup x Slip Joint
• Item Name: DWV Trap Adapter
• Length: 1.43 in
• Model: DW-724
