Mueller Streamline A11211NL Lead Free Union 3/4 Inch

Product Description

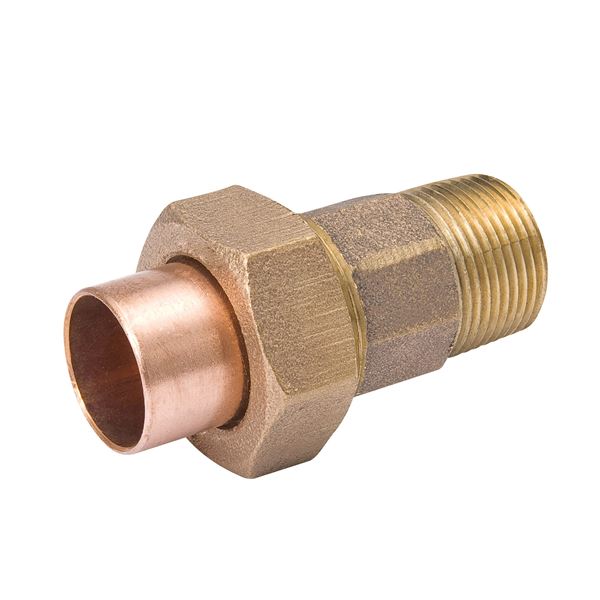

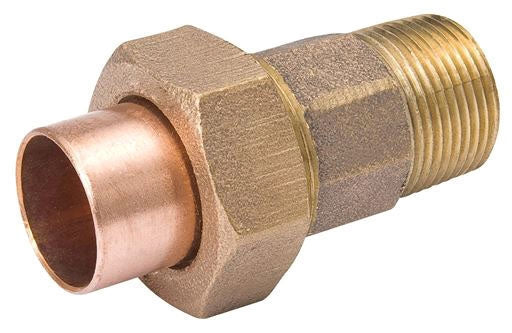

The MUELLER STREAMLINE A11211NL is a lead-free union fitting designed for non-pressurized DWV sanitary systems. It features a straight type with a Size A and Size B of 3/4 inch. Constructed from brass alloy using a cast process, it has a female soldered x male threaded end connection and an outer diameter of 7/8 inch.

• Lead-Free
• End Connection: Female Soldered x Male Threaded
• Application: Non-Pressurized DWV Sanitary System

Product Highlights

This lead-free union fitting is suitable for non-pressurized DWV sanitary systems, featuring a brass alloy construction and female soldered x male threaded end connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A11211NL

Technical Specifications

• Applicable Standard: ASME B16.23/29, NSF 61G
• Application: Non-Pressurized DWV Sanitary System
• End Connection: Female Soldered x Male Threaded
• Material: Brass Alloy
• Process: Cast
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Type: Straight
• Outer Diameter: 7/8 Inch
• End Type: C - Cup (Female Solder)
• End Size: 3/4
• Second End Type: MPT - Male Pipe Tapered Thread (NPT)
• Second End Size: 3/4
• Standards: ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 2.72 in
• Overall Height: 1.34 in
• Overall Width: 1.34 in
