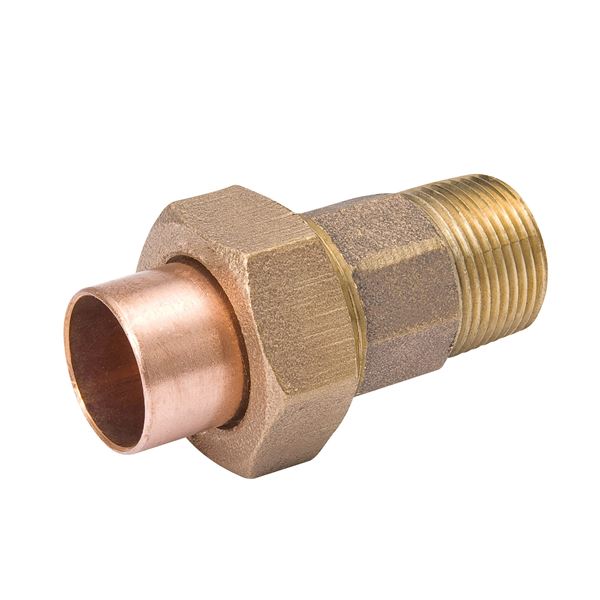

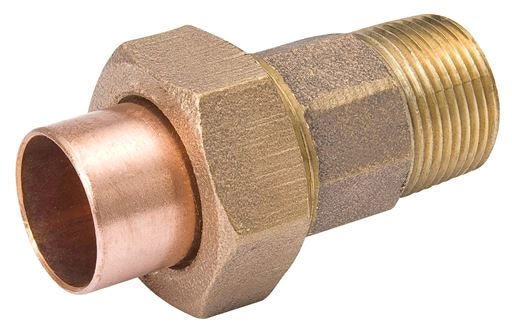

Mueller Streamline A11210NL Union 1/2 Inch

Product Description

The MUELLER STREAMLINE A11210NL is a union fitting designed for non-pressurized DWV sanitary systems. Constructed from brass alloy using a cast process, this straight type fitting features a female soldered x male threaded end connection. It conforms to ASME B16.23/29 and NSF 61G standards.

• Lead-Free
• End Connection: Female Soldered x Male Threaded
• Complies with ASME B16.23/29, NSF 61G Standards

Product Highlights

This lead-free union fitting is ideal for use in non-pressurized DWV sanitary systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A11210NL

Technical Specifications

• Applicable Standard: ASME B16.23/29, NSF 61G
• Application: Non-Pressurized DWV Sanitary System
• End Connection: Female Soldered x Male Threaded
• Material: Brass Alloy
• Process: Cast
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• Type: Straight
• Brand: MUELLER INDUSTRIES
• MPN: A11210NL
• End Type: C - Cup (Female Solder)
• End Size: 1/2
• Second End Type: MPT - Male Pipe Tapered Thread (NPT)
• Second End Size: 1/2
• Standards: ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 2.25 in
• Overall Height: 1.10 in
• Overall Width: 1.10 in
• Style: C-108
