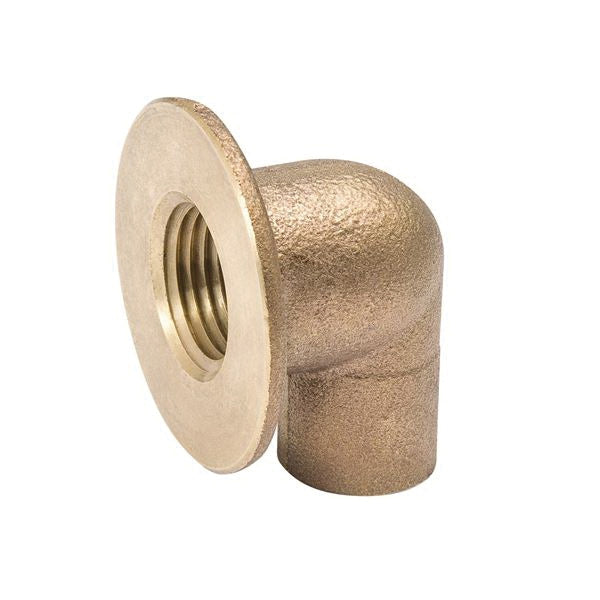

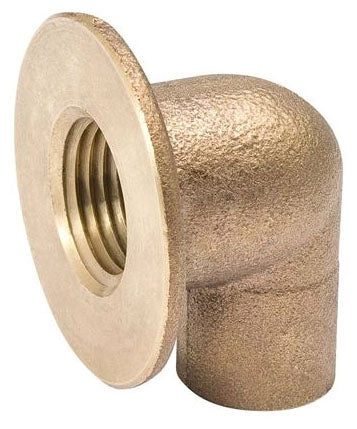

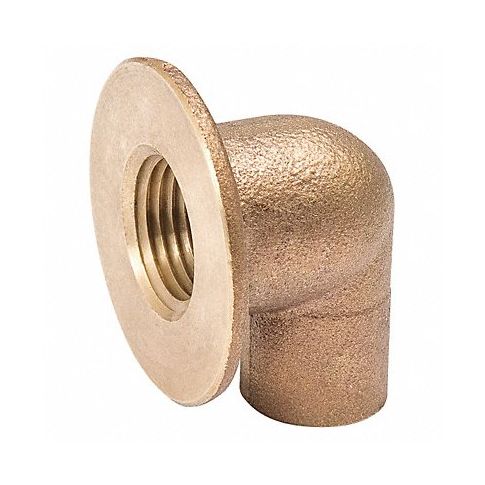

Mueller Streamline A03706NL Elbow Fitting 90 Degree

Product Description

The MUELLER STREAMLINE A03706NL is an elbow fitting designed for non-pressurized DWV sanitary systems. Constructed from cast brass alloy, this fitting features a 90-degree angle and lead-free construction. It has a 1/2 inch Size A and 1/2 inch Size B, with female soldered x female threaded end connections and an outer diameter of 5/8 inch.

• Features a 90-degree angle for specific plumbing configurations.
• Constructed from durable cast brass alloy.
• Suitable for non-pressurized DWV sanitary systems.

Product Highlights

This lead-free elbow fitting is ideal for potable water supply systems, offering quality and reliability for various plumbing applications.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A03706NL
• Country of Origin: US

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: ASME B16.23/29, NSF 61G
• Application: Non-Pressurized DWV Sanitary System
• End Connection: Female Soldered x Female Threaded
• Material: Brass Alloy
• Process: Cast
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• Outer Diameter: 5/8 Inch
• End Type: C - Cup (Female Solder)
• End Size: 1/2 in
• Second End Type: FPT - Female Pipe Tapered Thread, NPT
• Second End Size: 1/2 in
• Standards: ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 1.22 in
• Overall Height: 1.94 in
• Overall Width: 1.75 in
• Connection Size: 1/2 in
• Connection Type: Female Solder Cup x FNPT
• Item Name: Flanged Sink Elbow
• Length: 1-1/2 in
• Method of Manufacturer: Forged
• Model: E-215
• Tube Fitting Material: Copper
• Fitting Connection Type: C
• Tube Size: 1/2 in
• Compliance: NSF/ANSI 061
• Manufacturer: Streamline
• Condensed Mfg Number: A03706NL
• MPN: A 03706NL
• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N
