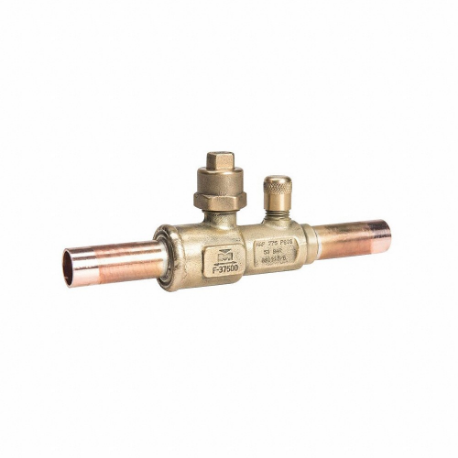

Mueller Streamline A 18962 Cyclemaster Ball Valves - FTG x FTG

Product Description

The MUELLER STREAMLINE A 18962 Cyclemaster Ball Valves - FTG x FTG is designed for refrigeration applications. Features include a 5/8 in connection size, FTG end type, and a Cv value of 10.00. It is suitable for use with CFC, HCFC, HFC, and HFO refrigerants, with a maximum operating pressure of 775 psi.

• Connection Size: 5/8 in
• End Type: FTG
• Maximum Operating Pressure: 775 psi

Product Highlights

Designed for refrigeration, this ball valve offers a secure and efficient solution for refrigerant control with a durable construction.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 18962

Technical Specifications

• Connection Size: 5/8 in
• End Type: FTG
• Cv: 10.00
• Kv: 9
• MAP: 775 psi
• Weight: 0.62 lb
• Operating Temperature [Min]: -40 ºF
• Operating Temperature [Max]: 300 ºF
• Seal Cap Kit: A 17842
• A: 6.07 in
• B: 3.36 in
• C: 2.26 in
• D: 2.23 in
• E: 1.69 in
• F: 0.63 in
• G Min: 0.56 in
• H: 1.16 in
• For Refrigerant Group: CFC, HCFC, HFC, HFO
• Inlet Connection Size: 5/8"
• Inlet Connection Type: Sweat
• Maximum Operating Pressure: 775 psi
• Outlet Connection Type: Sweat
• Overall Length: 6.1"
• Product Type: Refrigerant Ball Valve
• Dimension A: 6.07"
• Dimension B: 3 9/25"
• Dimension C: 2.26"
• Dimension D: 2.23"
• Dimension E: 1.69"
• Dimension F: 0.63"
• Dimension H: 1 4/25"
• Map: 53 Bar
• Max. Operating Temp.: 149°C
• Min. Operating Temp.: -40°C
• standard: UL/CUL LISTED, ASTM C177, CONFORMS TO PRESSURE EQUIPMENT DIRECTIVE 2014/68/EU, CRN 0C1241.9C
