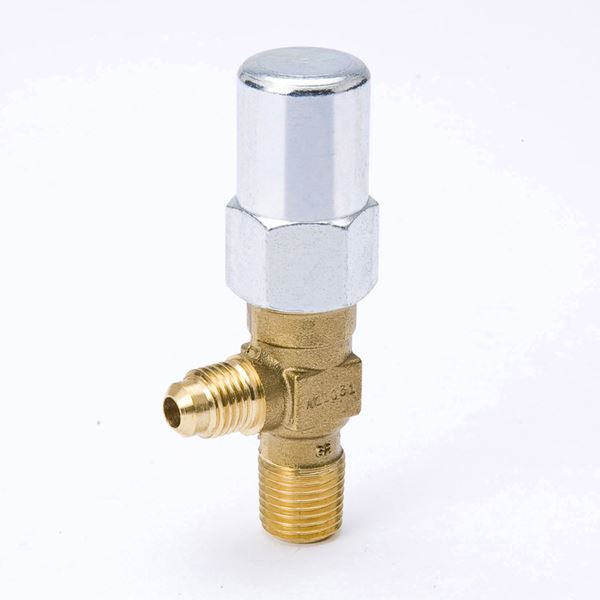

Mueller Streamline A 13503 Packed Angle Valve (3/8 in) A 16474

Product Description

Mueller Streamline A 13503 is a packed angle line valve with a non-backseating NPTFE inlet to 3/8 in flare connection designed for refrigeration applications. The valve is rated to 700 psi (48 bar) and operates from -40 F to 300 F (-40 C to 149 C). It has a forged brass body, a brass standard cap (seal cap MPN A 16474) and compact dimensions for shutoff and service isolation in refrigeration and HVAC systems.

• Angle packed line valve with non-backseating NPTFE inlet to 3/8 in flare outlet
• Design pressure 700 psi (48 bar); operating temperature -40 F to 300 F (-40 C to 149 C)
• Forged brass body with brass standard cap; replacement seal caps P 34627 (plastic) and A 16474 (brass)

Product Highlights

Packed angle, non-backseating valve for refrigeration lines

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 13503

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: A 13503
• Type: Packed line valve, angle, non-backseating
• Connection Inlet: 3/8 in NPTF (dryseal)
• Connection Outlet: 3/8 in flare
• Design Pressure (MAP): 700 psig / 48 bar
• Operating Temperature Range: -40 F to 300 F (-40 C to 149 C)
• Body Material: Forged brass
• Standard Cap Material: Brass
• Standard Seal Cap: A 16474
• Replacement Seal Cap - Plastic: P 34627
• Replacement Seal Cap - Brass: A 16474
• Overall Length: 3.15 in
• F Diameter: 0.379 in (9.63 mm)
• F Depth: 0.31 in (7.87 mm)
• Certifications: UL/cUL recognized; conforms to Pressure Equipment Directive 2014/68/EU; CRN 0C1241.9C
• Application: Refrigeration and HVAC shutoff and service isolation
• Refrigerant Compatibility: Compatible with CFC, HCFC, and HFC refrigerants and oils
