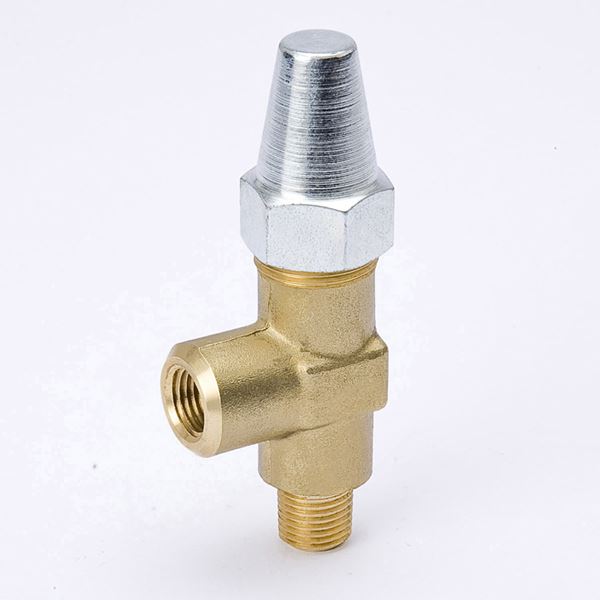

Mueller Streamline A 13502 Packed Line Valve NPTFE x NPTFI (Angle 1/4 in) Replacement A 00409

Product Description

The Mueller Streamline A 13502 is a packed angle line valve (non-backseating) with 1/4 in NPTFE x 1/4 in NPTFI connections for refrigeration and HVAC service. It is rated to 48 bar (700 psi) and operates from -40 °F to 300 °F (-40 °C to 149 °C). The valve includes a steel standard cap with replacement seal cap A 00409, compact dimensions (length 4.50 in) and a pack gland torque of 8 to 12 ft·lb (11 to 16 N·m).

• 1/4 in NPTFE x 1/4 in NPTFI packed angle valve (non-backseating)
• Pressure rating 48 bar (700 psi); operating temperature -40 °F to 300 °F (-40 °C to 149 °C)
• Steel standard cap with replacement seal cap A 00409; torque for pack gland 8 to 12 ft·lb (11 to 16 N·m)

Product Highlights

Packed angle line valve, 1/4 in NPTFE x NPTFI, 48 bar rating

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 13502
• Country of Origin: United States

Technical Specifications

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 13502
• Product Type: Packed line valve (non-backseating)
• Connection (A): 1/4 in NPTFE
• Connection (B): 1/4 in NPTFI
• Pressure Rating: 48 bar / 700 psi
• Operating Temperature Min: -40 °F (-40 °C)
• Operating Temperature Max: 300 °F (149 °C)
• Material: Steel
• Standard Cap Material: Steel
• Replacement Seal Cap: A 00409
• Torque Pack Gland: 8 to 12 ft·lb (11 to 16 N·m)
• Length (manufacturer listed): 4.50 in
• Dimension C: 1.38 in (35 mm)
• Dimension D: 1.06 in (27 mm)
• Dimension E: 3.78 in (96 mm)
• Weight: 0.22 kg / 0.49 lb
• Country of Origin: United States
