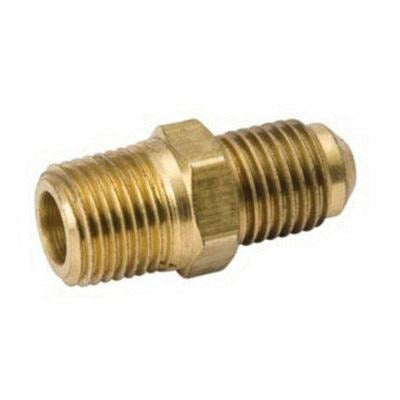

Mueller Streamline A 05003 45° Flare Half Union Connector 3/8 in to 1/8 in (Pack of 25)

Product Description

The Mueller Streamline A 05003 is a 45° flare half-union connector that joins 3/8 in flare tubing to 1/8 in NPTFE threaded ports for refrigeration and HVACR systems. The compact connector is rated to 700 psi (48 bar) MAP and includes a 5/8 in hex for tightening. Typical use cases include joining flare tubing to NPTFE ports on service valves, manifolds, and system components.

• 45° flare to NPTFE half-union connector for refrigeration and HVACR
• 3/8 in flare connection to 1/8 in NPTFE; rated 700 psi (48 bar) MAP
• Compact design with 5/8 in hex; packaged in boxes of 25

Product Highlights

45° flare half-union, 3/8 in to 1/8 in NPTFE, 700 psi, 5/8 in hex, box of 25

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 05003

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: A 05003
• Item Number: A 05003
• Product Type: 45° flare half-union connector (Flare to NPTFE)
• Category: 45° Flare Fittings - Connectors - Half Union - Flare to NPTFE
• Universal Category Code: U1-6A
• Connection Size A: 3/8 in
• Connection Type A: Flare
• Connection Size B: 1/8 in
• Connection Type B: NPTFE
• Angle: 45°
• Pressure Rating: 700 psi (48 bar) MAP
• Weight (each): 0.07 lb
• Hex Size: 5/8 in
• Dimension C (length): 1.25 in
• Dimension D (max diameter): 0.38 in
• Dimension E (minor diameter/thickness): 0.250 in
• Box Quantity: 25
