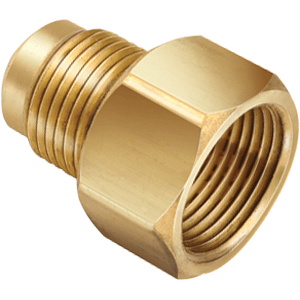

Mueller Streamline A 04879 Flare Union 1/2 inches x 5/8 inches

Product Description

The MUELLER STREAMLINE A 04879 is a brass flare union designed to connect 1/2 inch female/internal SAE flare tubing to 5/8 inch male/external SAE flare tubing. It is designed for HVAC/R applications and ensures a secure, leak-resistant connection suitable for various refrigeration and air conditioning systems. The fitting features a 15/16" hex for straightforward installation.

• Connects 1/2" Female/Internal Flare to 5/8" Male/External Flare connections.
• Fabricated from brass for durability and resistance to seepage.
• Accurately machined surfaces help ensure tight, leak-proof joints.

Product Highlights

This Streamline flare union is made from brass and connects different sized flare connections. It is suitable for HVAC/R systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 04879

Technical Specifications

• Connection Size 1: 1/2 "
• Connection Size 2: 5/8 "
• Connection Type 1: 45° Flare (Female)
• Connection Type 2: 45° Flare (Male)
• Connection Type: SAE Flare
• Dimension Standards: SAE J513, MS-35867 Thru MS-35873, MS-35919, MS-35926, MS-16993
• Dimensions: 1.63" L
• Fitting Type: Union
• For Use With: HVAC/R Systems
• Hex Size: 15/16 "
• Material: Brass
• Pressure Rating: 714.7 PSI
• Thread Size: 3/4"-16 UNF (For 1/2" Flare), 7/8"-14 UNF (For 5/8" Flare)
• Tube OD: 1/2", 5/8"
• Manufacturer: MUELLER STREAMLINE CO.
• Manufacturer Part #: A 04879
