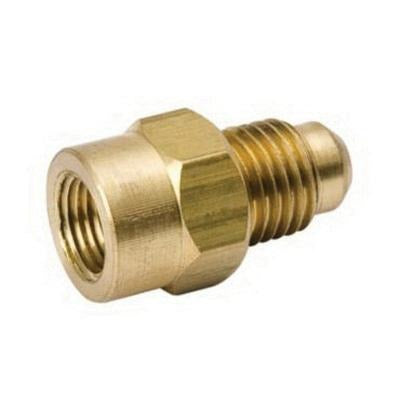

Mueller Streamline A 04622 45° Flare to NPTFI Half Union Connector 1/4 in x 1/8 in (Pack of 25)

Product Description

Mueller Streamline A 04622 is a 45° flare half-union connector that transitions from a 1/4 in SAE flare (A) to a 1/8 in NPTFI (B). The brass fitting has an overall C dimension of 1.03 in, a 9/16 in hex for wrenching, and a rated maximum allowable pressure of 48 bar (700 psi). It is intended for HVAC/R connection and fluid line transition applications and is packaged 25 per box.

• 45° flare to NPTFI half-union connector; connects 1/4 in SAE flare to 1/8 in NPTFI
• Brass construction, overall length (C) 1.03 in with 9/16 in hex for wrenching
• Rated maximum allowable pressure 48 bar (700 psi); packaged 25 per box

Product Highlights

45° brass flare-to-NPTFI half union, 1/4 in x 1/8 in, 48 bar (700 psi), 1.03 in length, 9/16 in hex

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 04622
• Country of Origin: United States

Technical Specifications

• Brand: MUELLER STREAMLINE
• MPN: A 04622
• Product Name: 45° Flare to NPTFI Half Union Connector
• Model/Type: U3-4A
• Connector Angle: 45°
• Connection Size (A): 1/4 in (SAE flare)
• End Type (A): Flare
• Connection Size (B): 1/8 in (NPTFI)
• End Type (B): NPTFI (female pipe thread, internal)
• Maximum Allowable Pressure (MAP): 48 bar / 700 psi
• Material: Brass
• Overall Length (C): 1.03 in
• Hex Size: 9/16 in
• Weight: 0.042 lb
• Package Quantity: 25 per box
• Country of Origin: United States
• Category: HVAC & Refrigeration
• Application: HVAC/R connections and fluid line transitions
• Condition: New
