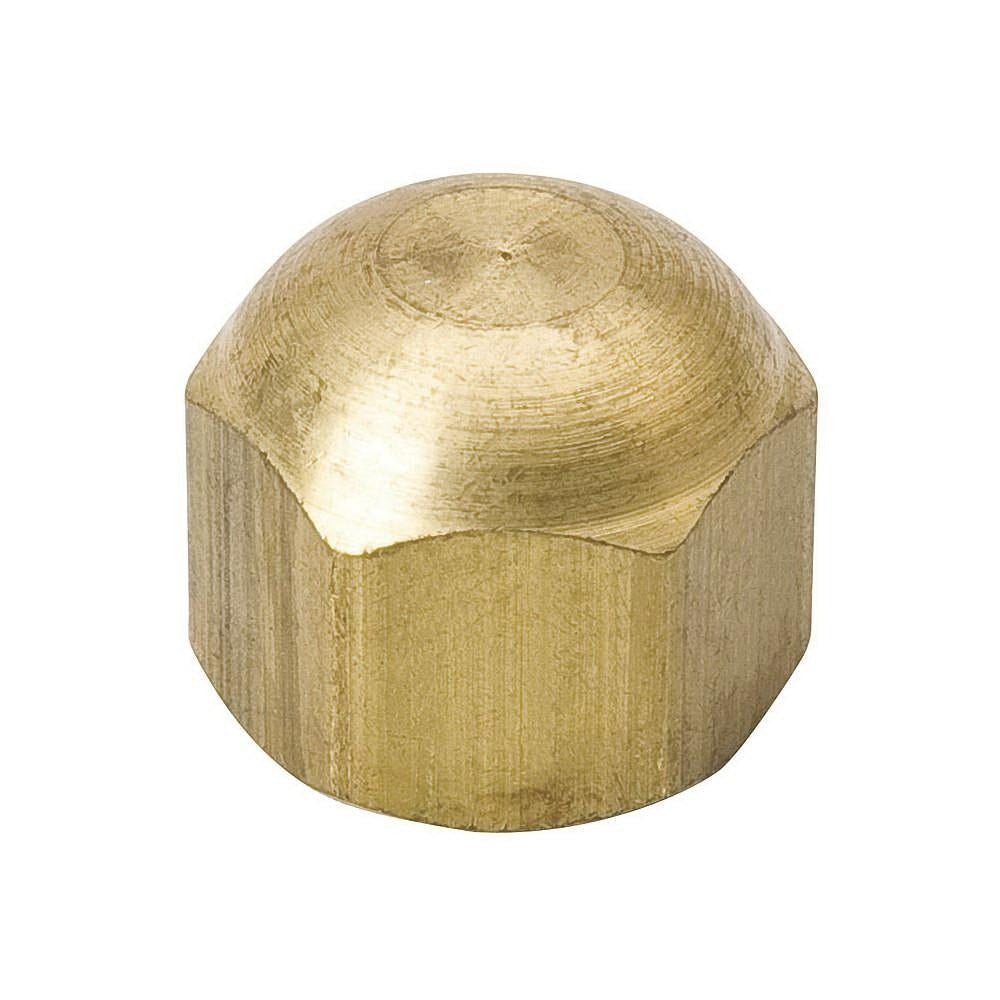

Mueller Streamline A 04545 Brass Flare Seal Cap (3/8 in / 45°)

Product Description

The Mueller Streamline A 04545 is a brass flare seal cap used to cap 3/8 in 45° flare connections in refrigeration and air conditioning systems. The part is a flare end type rated to a maximum allowable pressure of 48 bar (700 psi). Key dimensional callouts are A = 0.44 in and B = 0.69 in, with a 3/4 in hex and an individual weight of approximately 0.045 lb.

• Brass construction; designed as a 45° flare seal cap for refrigeration and ACR applications
• Connection size: 3/8 in flare; end type: flare; maximum allowable pressure: 48 bar (700 psi)
• Dimensions: A = 0.44 in, B = 0.69 in; hex size: 3/4 in; weight each: ~0.045 lb; packaged 25 per box

Product Highlights

Brass 45° flare seal cap for 3/8 in connections, MAP 48 bar (700 psi), hex 3/4 in, boxed 25 per box

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 04545

Technical Specifications

• Brand: Mueller Streamline
• MPN: A 04545
• Product Name: Brass Flare Seal Cap
• Material: Brass
• Connection Size: 3/8 in
• Angle: 45°
• End Type: Flare
• Maximum Allowable Pressure (MAP): 48 bar (700 psi)
• Weight (each): 0.045 lb
• Dimension A: 0.44 in
• Dimension B: 0.69 in
• Hex Size: 3/4 in
• Box Quantity: 25 per box
• Intended Application: Refrigeration and air conditioning (ACR)
