Mueller Streamline A 00480 45 Degree Flare Connector 1/4 in x 1/2 in MBCUR3-84

Product Description

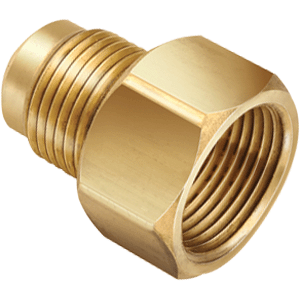

The Mueller Streamline A 00480 is a 45 degree flare fitting connector that joins an internal 1/4 in flare to an external 1/2 in flare for tube connections. The brass adapter has an overall length of 1.38 in, a 15/16 in hex for tightening, and a weight of 0.107 lb. It is rated to 700 psig working pressure and meets SAE/MS industry standards for HVAC applications.

• 45 degree flare connector for internal 1/4 in to external 1/2 in flare connections
• Brass construction, 1.38 in length, 15/16 in hex, 0.107 lb weight
• Rated 700 psig working pressure; conforms to SAE J5 13 and MS-35873/MS-35919/MS-35926/MS-16993; NSF approved

Product Highlights

45 degree brass flare adapter, 1/4 in x 1/2 in connections, 1.38 in length, 700 psig, NSF approved

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 00480

Technical Specifications

• Manufacturer: Mueller Streamline
• Manufacturer Part Number: A 00480
• Item Number: UR3-84
• Alternate Part Numbers: 30685768226187; A00480; MBCUR3-84
• Connection Type: Flare
• Connection Ends: Internal flare x External flare
• Connection Sizes: 1/4 in x 1/2 in
• Flare Angle: 45 degree
• Material: Brass
• Length: 1.38 in
• Hex Size: 15/16 in
• Weight: 0.107 lb
• Working Pressure: 700 psig
• Approval: NSF approved
• Standards: SAE J5 13; MS-35873; MS-35919; MS-35926; MS-16993
• Application: HVAC
