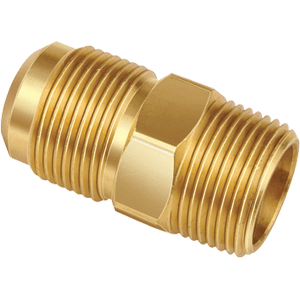

Mueller Streamline A 00330 Half Union 1/4 x 1/8 Flare to NPTFE 45° (MBCU1-4A)

Product Description

Mueller Streamline A 00330 is a brass half union fitting that transitions a 1/4 in flare connection to a 1/8 in NPTFE connection for refrigeration and HVAC applications. The fitting is manufactured from brass forgings or drawn brass rod, machined for leakproof joints, and has a smooth interior for reduced pressure drop. Pressure rating is 700 psig (48 bar) with a compact length of 1.06 in and 7/16 in hex.

• Material: brass construction from forgings or drawn rod; smooth interior finish
• Connections: 1/4 in flare to 1/8 in NPTFE; hex size 7/16 in; overall length 1.06 in
• Pressure rating: 700 psig (48 bar); conforms to MS-135867/35873/35919/24815/16993 and SAE J513

Product Highlights

Brass 45° half union fitting; 1/4 in flare to 1/8 in NPTFE; 700 psig rating

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: A 00330

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: A 00330
• Alternate Part Numbers: A00330, MBCU1-4A, 30685768221857
• Product Type: Half Union / Adapter
• Material: Brass (forgings or drawn brass rod)
• Connection A: 1/4 in Flare
• Connection B: 1/8 in NPTFE
• End Style: Flare x NPTFE
• Angle: 45°
• Hex Size: 7/16 in
• Overall Length: 1.06 in
• Diameter C: 0.38 in
• Diameter E: 0.19 in
• Pressure Rating: 700 psig (48 bar)
• Standards/Approvals: MS-135867/35873/35919/24815/16993; SAE J513
