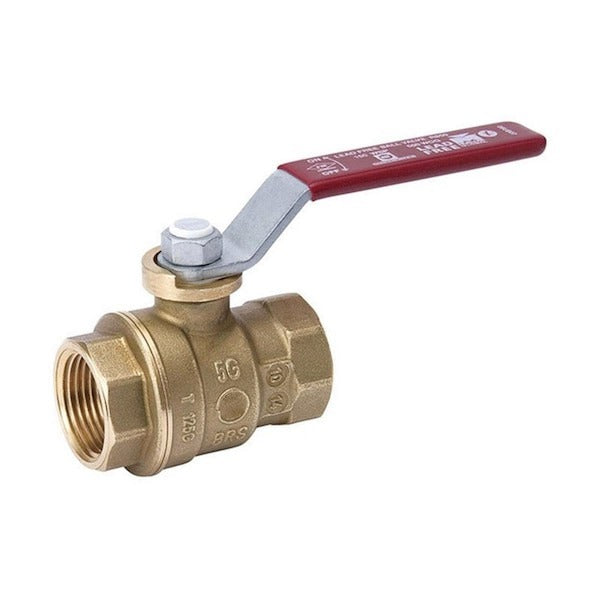

Mueller Streamline 107-408NL 2FBV Ball Valve Full Port 2 Inch FPT

Product Description

Mueller Streamline 107-408NL is a 2FBV full-port water ball valve with PTFE seats and a 2 inch female pipe thread (FPT) connection. It is suitable for a wide range of liquids and gases, with sweat pressure rating up to 600 psi and FPT up to 400 psi. The valve is WOG rated for 1/2 to 2 inch sizes, steam rated to 125 psi nonshock, and operates from 0°F to 300°F at 50 psi.

• Full-port design with PTFE seats for low flow restriction and chemical compatibility
• Pressure ratings: sweat 600 psi; FPT 400 psi; WOG rating for 1/2"–2" sizes; steam rated 125 psi (nonshock)
• Operational temperature range 0°F to 300°F at 50 psi; suitable for throttling and balancing nonabrasive fluid flows (20%–100% of capacity)

Product Highlights

2 inch FPT full-port ball valve with PTFE seats, multi-media compatibility, and high pressure and temperature ratings.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: 107-408NL

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: 107-408NL
• Model / URI Part Number: 2FBV
• Product ID: 2FBV
• Connection Type: FPT (female pipe thread)
• Nominal Size: 2 in
• Port Type: Full port
• Seat Material: PTFE
• Suitable Media: Liquids and gases
• Pressure Rating (sweat): 600 psi
• Pressure Rating (FPT): 400 psi
• WOG Rating: Rated for water/oil/gas for 1/2 in to 2 in sizes
• Steam Rating: 125 psi (nonshock)
• Temperature Range: 0°F to 300°F at 50 psi
• Length: 4.30 in
• Width: 3.37 in
• Height: 4.73 in
• Weight: 3.89 lbs
