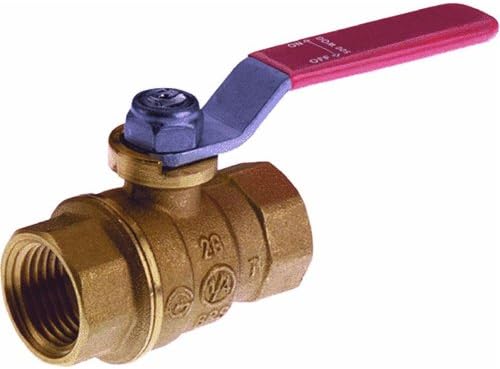

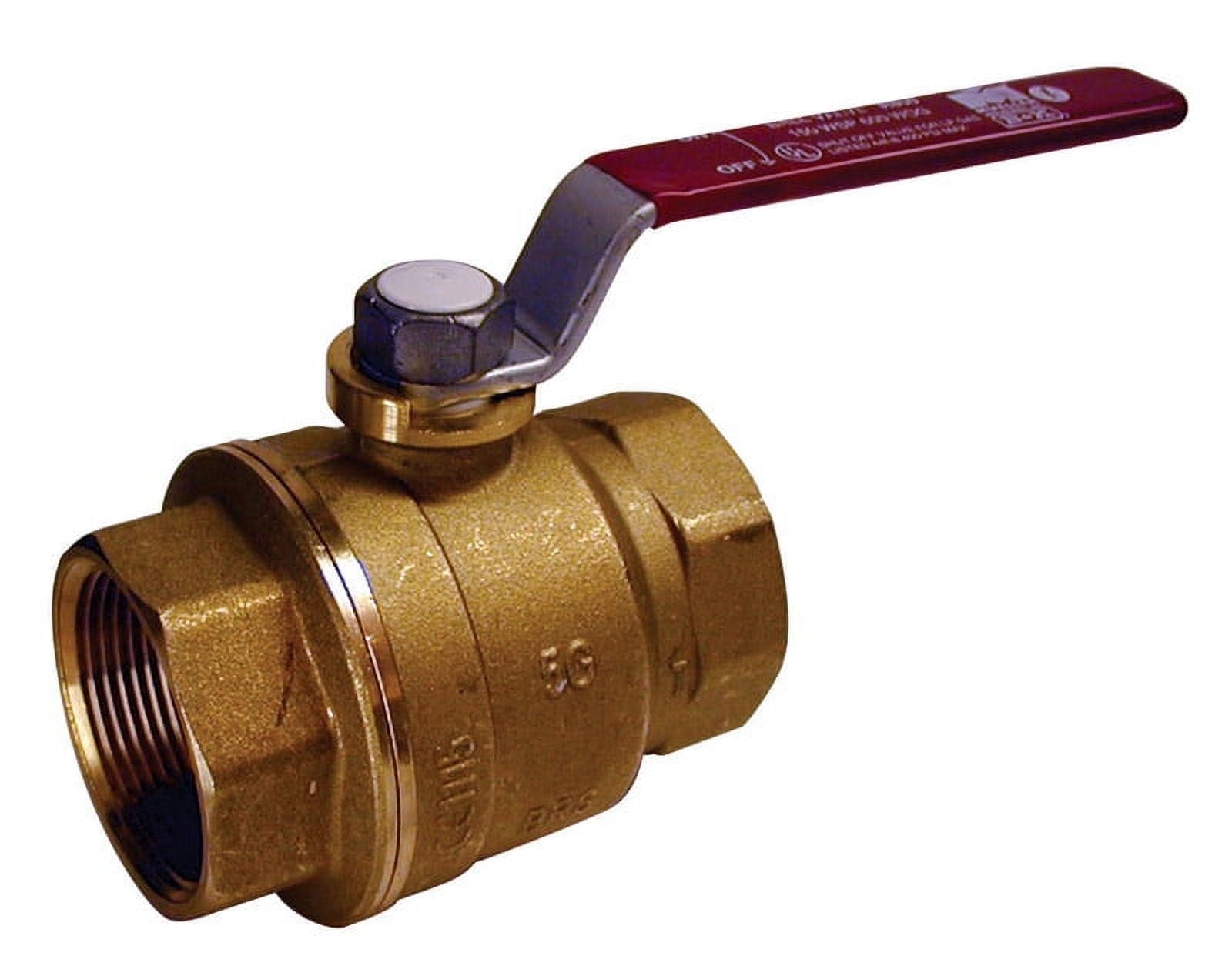

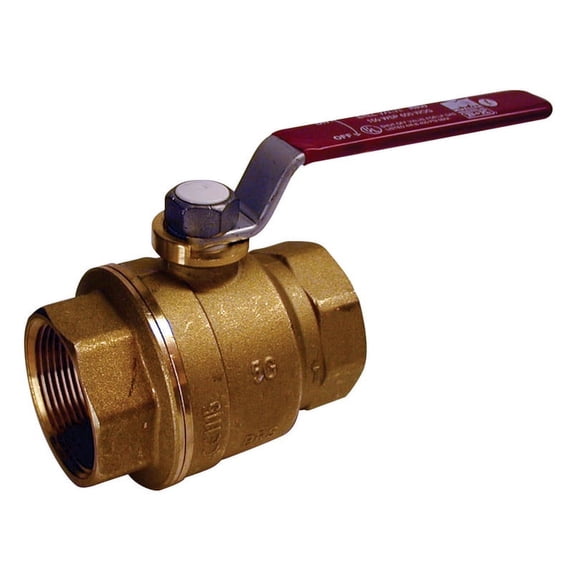

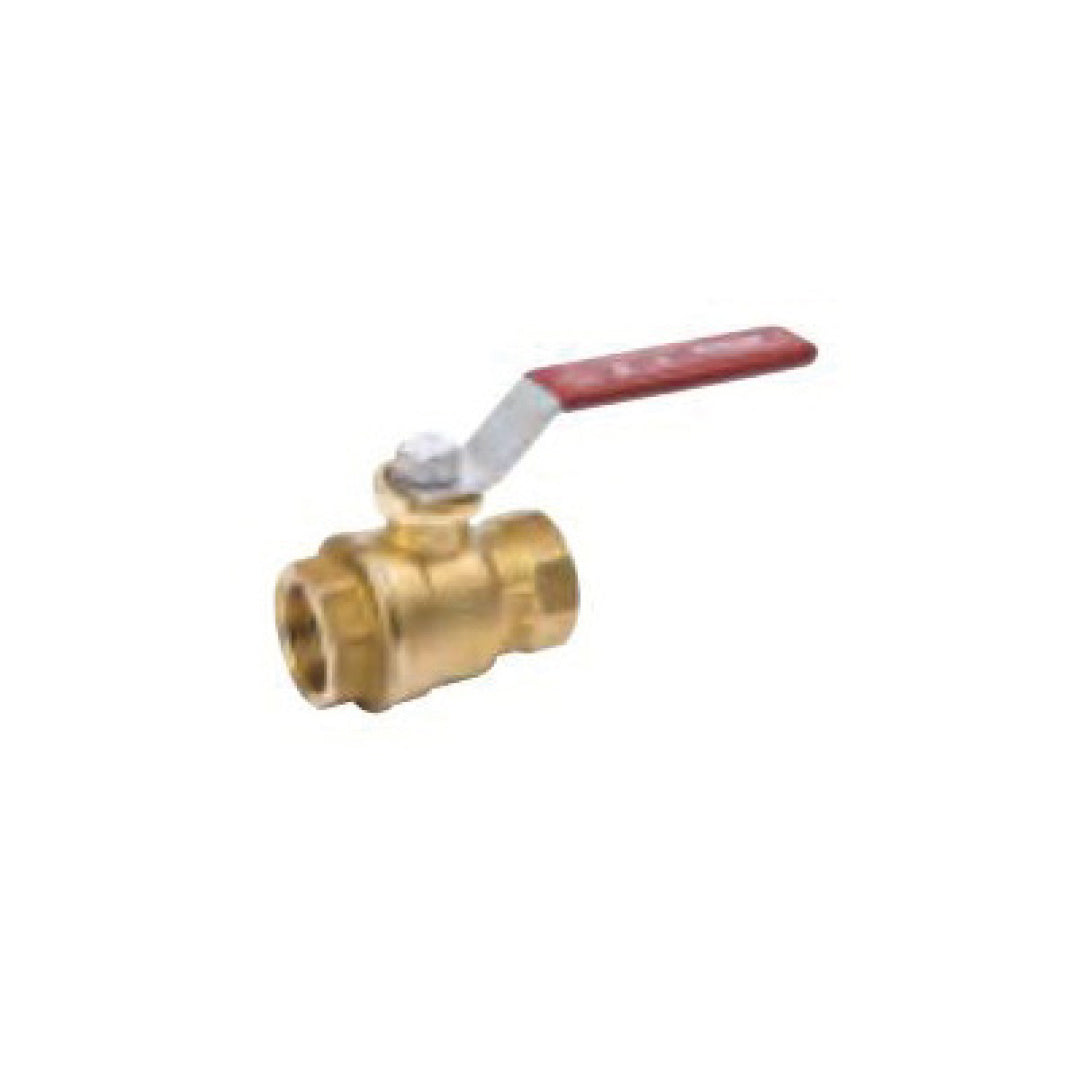

Mueller Streamline 107-406NL Ball Valve Forged Brass Full Port (1-1/4 in FIP)

Product Description

Mueller Streamline 107-406NL is a forged brass full-port ball valve with 1-1/4 in female iron pipe (FIP) connections, quarter-turn operation, and a 600 PSI nonshock rating. The valve is rated 150 PSI WSP for steam and is manufactured to a maximum 0.25% weighted average lead content on wetted surfaces. Typical use cases include plumbing, shutoff, and flow control in commercial and residential systems.

• Full-port forged brass construction with 1-1/4 in FIP x 1-1/4 in FIP threaded connections
• Pressure ratings: 600 PSI nonshock WOG; 150 PSI WSP for steam; UL LP gas rated to 400 PSI
• Quarter-turn operation; temperature range 40°F to 350°F; manufactured to <=0.25% weighted average lead on wetted surfaces

Product Highlights

Forged brass full-port ball valve, 1-1/4 in FIP, 600 PSI rating, quarter-turn operation

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: 107-406NL
• Country of Origin: Italy

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer: Mueller Streamline Company
• Manufacturer Part Number: 107-406NL
• Model Number: 107-406NL
• Valve Type: Full-port ball valve
• Material: Forged brass
• Size: 1-1/4 in FIP x 1-1/4 in FIP
• Connection Type: Female iron pipe (FIP) threaded
• Operation: Quarter-turn
• Pressure Rating: 600 PSI nonshock WOG
• Working Pressure (WSP): 150 PSI (steam)
• UL LP Gas Rating: 400 PSI
• Temperature Range: 40°F to 350°F
• Lead Content: Manufactured to include no more than 0.25% weighted average lead on wetted surfaces
• Standards/Certifications: Meets ANSI/NSF 61 (for select sizes); CSA certified; Meets federal specification WW-V-35B Type II Style 3; pipe ends comply with ANSI B1.20.1
• Dimensions (L x W x H): 5.3 in x 2.3 in x 3.3 in
• Weight: 1.0 lb
• Number of Ports: 2 (2-way)
• UPC: 032888110335
• Country of Origin: Italy
