Mueller Streamline 107-404NL Ball Valve Packing Gland (3/4 in FPT)

Product Description

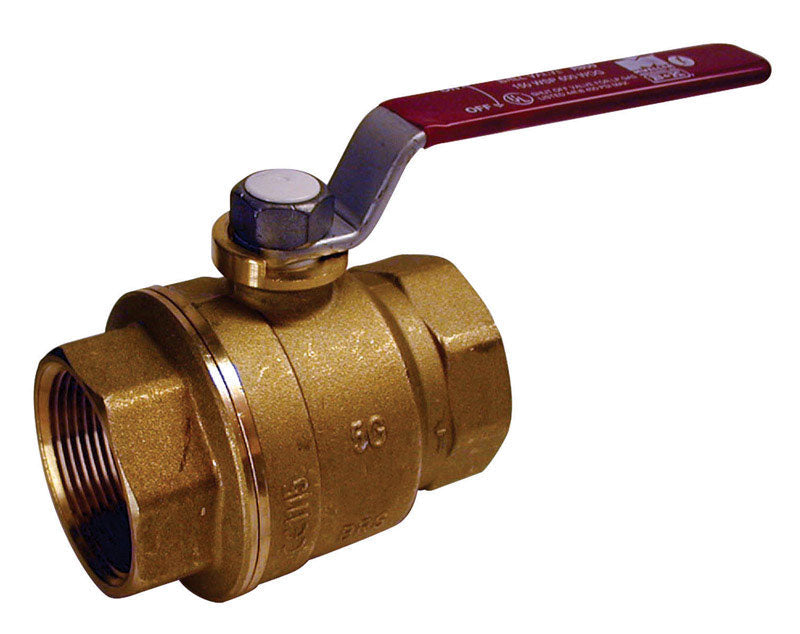

The Mueller Streamline 107-404NL is a 3/4 in FPT full-port brass ball valve with packing gland for threaded FPT x FPT connections. It features a quarter-turn lever handle, stainless steel trim and PTFE seats, and a chrome plated brass body with lead-free average lead content. The valve is rated to 600 psi and -20 to 300 deg. F and is intended for use with flammable liquids.

• Full-port design with 3/4 in FPT x FPT threaded connections for maximum flow
• Quarter-turn lever handle with stainless steel trim and PTFE softgoods
• Pressure and temperature rating: 600 psi, -20 to 300 deg. F; chrome plated brass body

Product Highlights

3/4 in FPT full-port ball valve; packing gland; PTFE seats; stainless steel trim; 600 psi; -20 to 300 deg. F; CSA Certified, UL Listed

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: 107-404NL

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: 107-404NL
• Product Type: Ball Valve
• Connection Size: 3/4 in
• Connection Type: FPT x FPT
• End 1 Type: FPT
• End 2 Type: FPT
• Body Material: Brass
• Finish: Chrome plated
• Trim Material: Stainless Steel
• Softgoods Material: PTFE
• Valve Type: Packing Gland
• Port Type: Full
• Handle Type: Lever
• Handle Material: Steel
• Number of Turns: Quarter Turn
• Pressure Rating: 600 psi
• Temperature Rating: -20 to 300 deg. F
• Chrome Plated: Yes
• Average Lead Content: Lead-Free
• Application: For use with flammable liquid
• Certifications: CSA Certified, UL Listed
• UPC: 032888110700
• Unit: EA
