Mueller Steam Specialty M6717868 Butterfly Valve 200 psi (2-1/2 in) MPN

Product Description

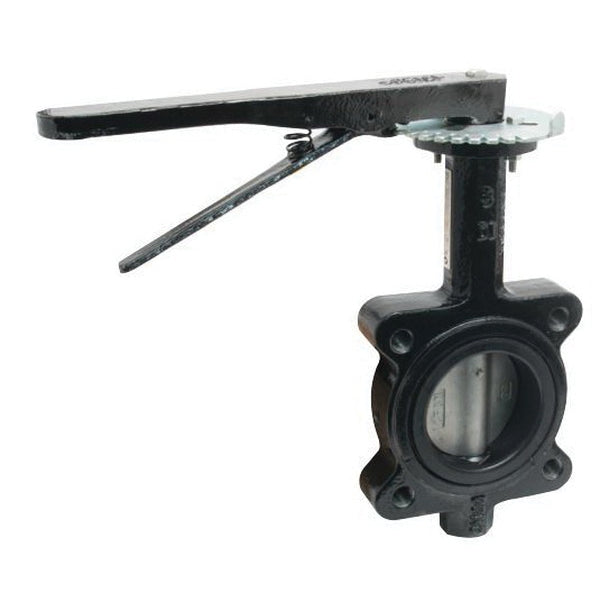

The Mueller Steam Specialty M6717868 is a ductile iron full-lug butterfly valve designed for various applications. It is suitable for controlling water, air, oil, gases, and corrosive materials. This valve is ideal for irrigation, cooling water, and fire protection systems. The valve effectively handles on-off, throttling, or isolation service requirements.

• Designed for high velocity and vacuum service
• Features a one-piece stem for maximum strength
• Resilient elastomer seat for durability

Product Highlights

This valve supports ANSI 125 and 150 flanges and complies with API 609 standards. It maintains a pressure rating of 200 psi and is NSF/ANSI 61-G certified.

Product Information

Standard Information

• Brand: Mueller Steam Specialty
• Manufacturer: Watts

Technical Specifications

• Connection Size: 2-1/2 in
• Disc Material: 316 Stainless Steel
• Item Name: Butterfly Valve
• Material: Ductile Iron
• Model: 88
• Operator Type: 10-Position Lever Handle
• Pressure Rating: 200 psi
• Seat Material: EPDM
• Stem Material: 316 Stainless Steel
• Type: Full-Lug
