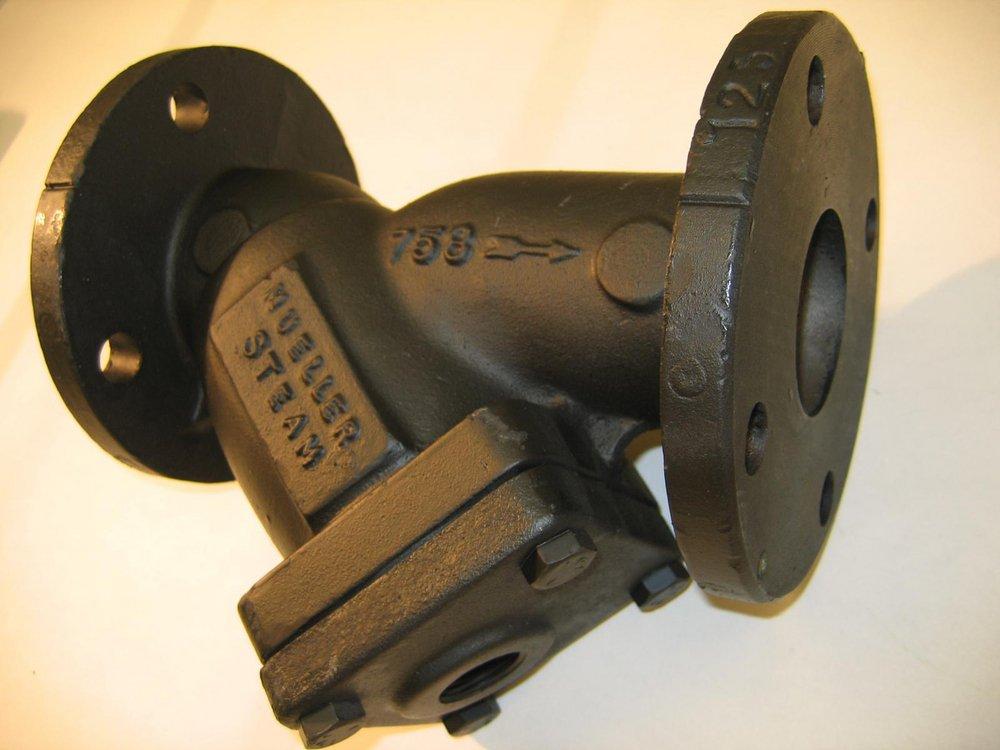

Mueller Steam Specialty M6706963 Model 758 12 in. 125# IMP Cast Iron Flanged Wye Strainer

Product Description

The Mueller Steam Specialty M6706963 Model 758 is a twelve inch cast iron flanged wye strainer designed for effective filtration in pipelines. This strainer is essential for protecting pumps and other mechanical equipment from foreign particles. It features a robust design with a cast iron body and a durable 304 stainless steel screen offering a large open area for maximum flow.

• Cap and body secured with a spiral wound graphite-filled gasket for a strong seal
• Standard NPT blow off connection included
• Suitable for various sizes ranging from three-fourths inch to twenty-four inches

Product Highlights

This model is specifically engineered to strain foreign matter from pipelines effectively. Its stainless steel perforated screen enhances durability and performance, ensuring longevity and reliability in various applications.

Product Information

Standard Information

• Brand: Mueller Steam Specialty
• MPN: M6706963

Technical Specifications

• Body Material: Cast Iron
• Screen Material: 304 Stainless Steel
• Pressure Rating: 125# IMP
• Sizes Available: 3/4 in. to 24 in. (20 - 600 mm)
• Connection Type: Flanged
• Screen Type: Perforated
• Blow Off Connection: Standard NPT
