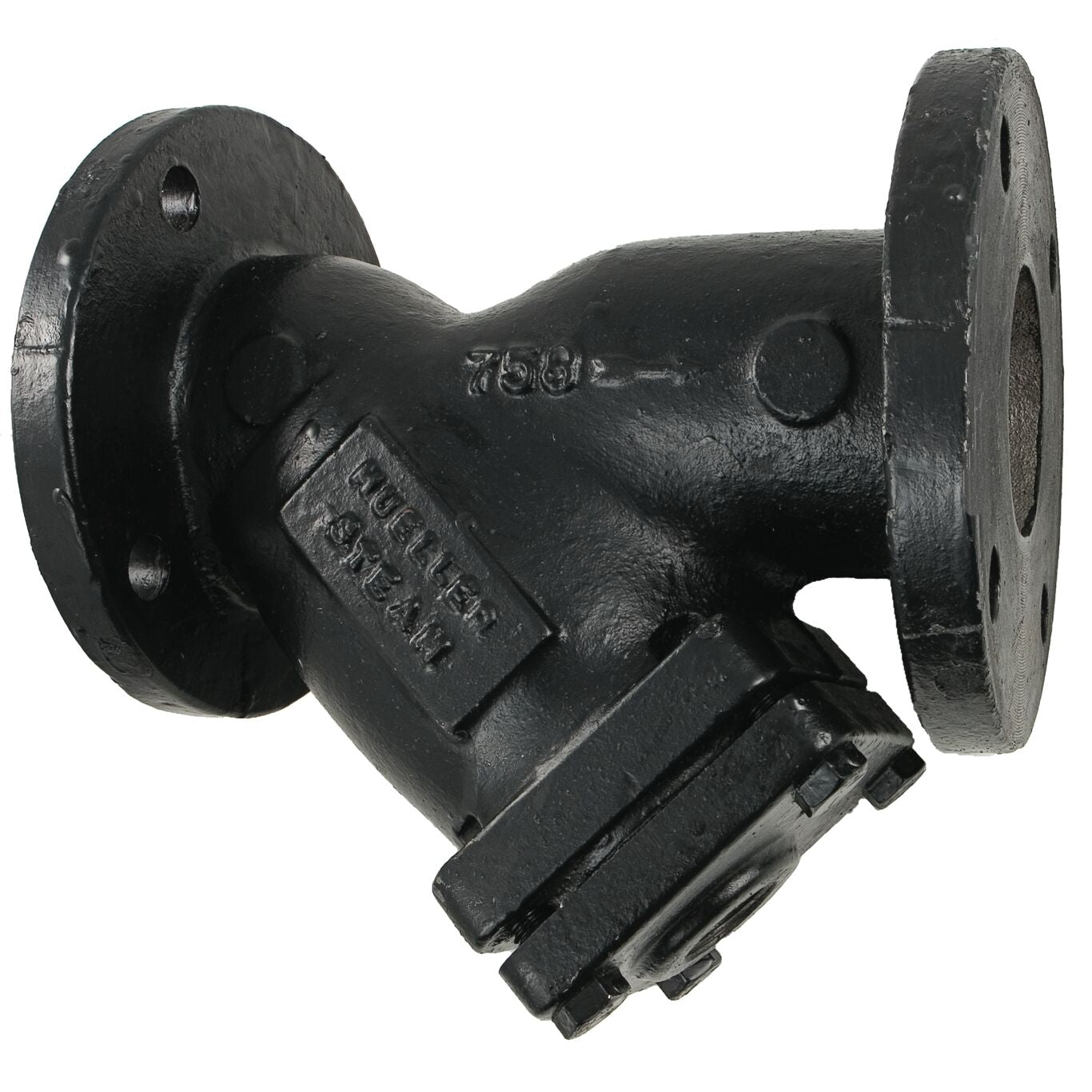

Mueller Steam Specialty M6704619 Model 758 Cast Iron Flanged Perforated Wye Strainer Class 125 (10 in) (M75810)

Product Description

Mueller Steam Specialty M6704619 is a Model 758 cast iron flanged perforated wye strainer designed to remove foreign matter from pipelines and protect downstream equipment. The unit features a 0.125-inch perforated 304 stainless steel screen, a bolted retainer cover and tapered seats in the body and cover flange to retain the screen and prevent bypass. It includes a 2 in female threaded blowdown and Class 125 rating with 10 in flanged connections.

• Cast iron body with bolted retainer cover and tapered seats to retain screen and prevent bypass
• 0.125 in (1/8 in) perforated 304 stainless steel screen for particulate straining; threaded 2 in female blowdown for cleaning
• Flanged 10 in inlet/outlet connections, Class 125 rating; pressure-temperature rating 125 psi at 450 F

Product Highlights

Cast iron flanged wye strainer, 0.125 in 304 stainless screen, bolted cover, 2 in female blowdown, Class 125, 10 in flanged connections

Product Information

Standard Information

• Brand: MUELLER STEAM SPECIALTY
• Manufacturer Part Number: M6704619

Technical Specifications

• Brand: Mueller Steam Specialty
• Manufacturer Part Number: M6704619
• Part Number: M75810
• Model / Series: 758
• Item Number: 145162
• Body Material: Cast iron
• Body Pattern: Y-pattern
• Strainer Type: Wye
• Screen Material: 304 stainless steel
• Screen Perforation / Size: 0.125 in (1/8 in)
• Cover Type: Bolted cover
• Seats: Tapered seats in body and cover flange
• Retainer Cover Material: Cast iron
• Retainer Cover Type: Bolted
• Inlet Connection Size: 10 in (250 mm)
• Outlet Connection Size: 10 in (250 mm)
• Connection Type: Flanged joint
• Blowdown Outlet Connection: Female threaded
• Blowdown Outlet Size: 2 in
• Flange Material: Cast iron
• Bolt Material: Grade 5
• Gasket Material: Non-asbestos
• Class Rating: Class 125
• Pressure-Temperature Rating: 125 psi at 450 F
• Maximum Working Pressure: 200 psi at 150 F (13.79 bar)
• Maximum Operating Temperature: 450 F (229.9 C)
• Minimum Operating Temperature: -20 F (-28.6 C)
• WOG Rating: 200 psi at 150 F
• Lead Free: Not In Scope
• Buy American Act Compliant: No
• Unit of Measure: Each
