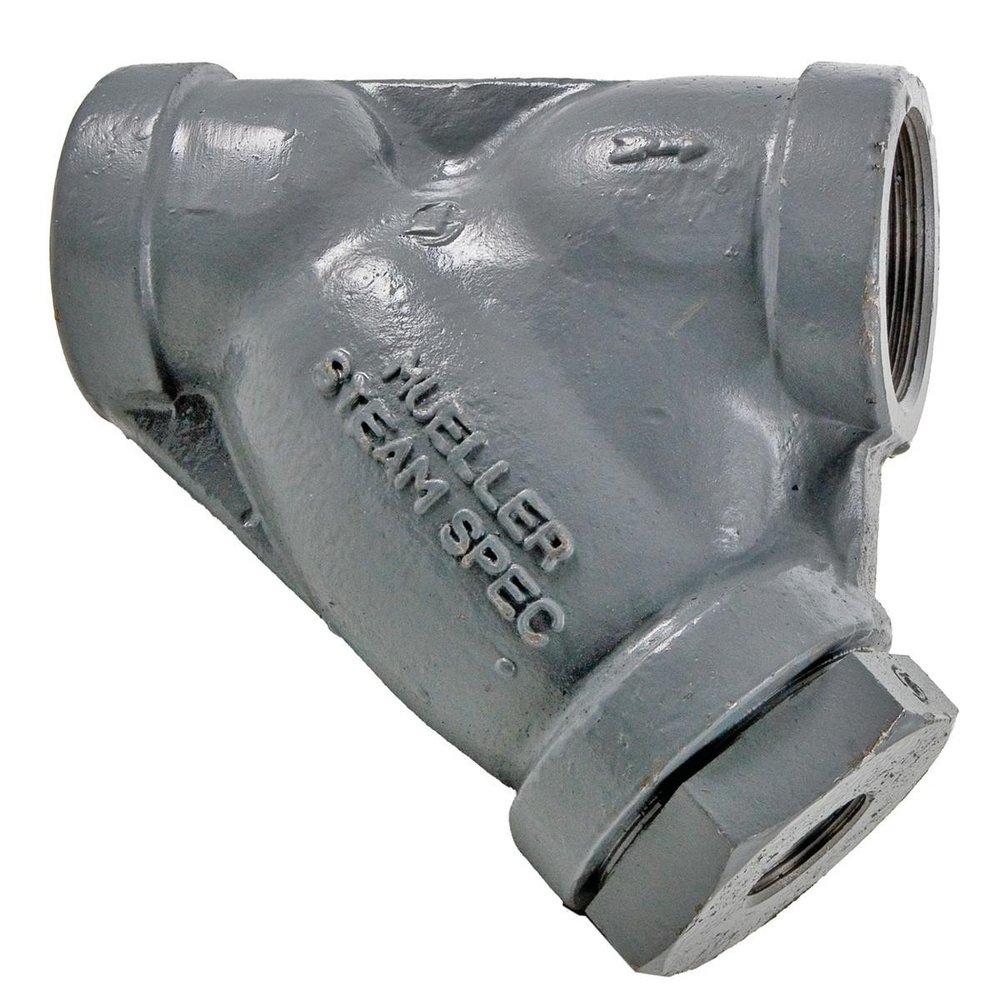

Mueller Steam Specialty M6700670 Model 581 600# Carbon Steel Threaded Mesh Wye Strainer

Product Description

The Mueller Steam Specialty Model M6700670 is a carbon steel threaded mesh wye strainer designed for effective filtration in various piping systems. This wye strainer is essential for protecting pumps and other mechanical equipment from foreign substances. It features a robust cast carbon steel body combined with a durable 304 stainless steel screen.

• Designed to strain foreign particles from pipelines for effective protection.
• Features a perf screen with a thickness of 0.062 inches for enhanced filtration.
• Capable of locking the screen in place to prevent sediment bypass.

Product Highlights

This wye strainer is suitable for sizes ranging from one-fourth inch to two inches. It operates at a pressure class of 600, providing reliability for various applications.

Product Information

Standard Information

• Brand: Mueller Steam Specialty
• MPN: M6700670
• Material: Carbon Steel
• Screen Material: Stainless Steel
• Size: 1-1/4 x 1-1/4 inches
• Class: 600
• Type: Wye Strainer
• Part Number: M581CSH

Technical Specifications

• Screen Thickness: 0.062 inches
• Body Material: Cast Carbon Steel
• Screen Lock: Yes
• Sizes Available: 1/4 in. - 2 in. (6 - 50 mm)
• Applications: Used to protect pumps and mechanical equipment
• Performance: Effective sediment filtration
