Mueller RP02834 ACR Press 90 Elbow Ftg x P (7/8 in/90°)

Product Description

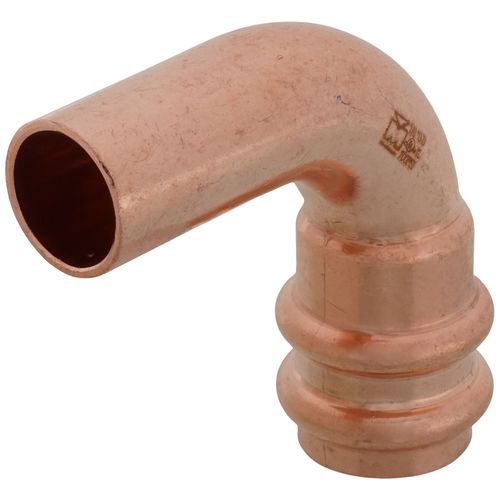

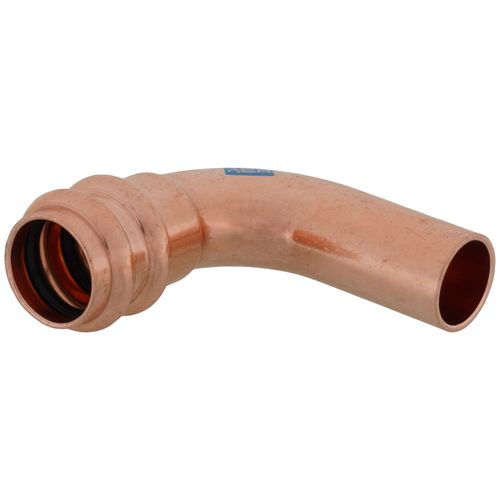

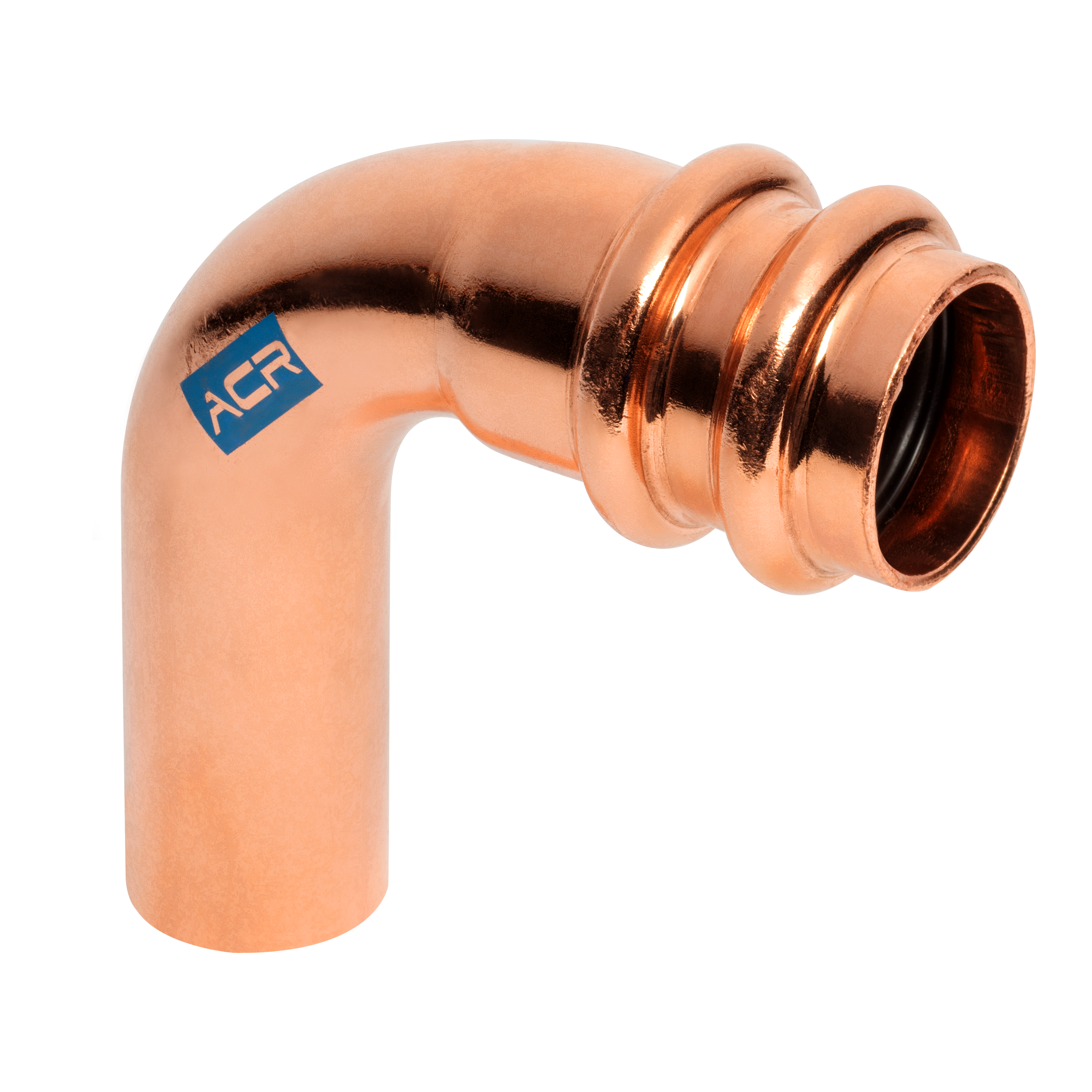

The Mueller Industries RP02834 is a 7/8 in ACR press 90° long-radius street elbow with a female thread on one end and a press connection on the other, used in refrigeration and HVAC ACR systems. It fits 7/8 in outside diameter copper tubing and is designed for directional changes in refrigerant lines. The fitting incorporates Streamline press technologies for improved sealing and joint strength and is compatible with common refrigerants including R410A.

• 7/8 in outside diameter ACR fitting, long-radius 90° street elbow with female thread x press connection
• Copper construction, approved for Type ACR, L, K hard and soft copper tube; compatible with R410A and common refrigerant oils
• Streamline press technologies (T.R.A.P., DualSeal, TrapZone, Force360, Tri-Lock) with operating range -40 °F to 250 °F and max pressure 700 psi

Product Highlights

7/8 in ACR long-radius 90° street elbow, copper female-to-press connection; compatible with standard full-size press tools; operating -40 °F to 250 °F, 700 psi max.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02834

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP02834
• Product Type: ACR press 90° elbow (long-radius street elbow)
• Connection Type: Female thread (FTG) x press (P)
• Size: 7/8 in (outside diameter)
• Material: Copper
• Compatible Tube Types: Type ACR, L, K hard and soft copper tube
• Compatible Refrigerants: R410A and other common refrigerant gases and oils
• Technologies: Two Ring Advanced Press (T.R.A.P.), DualSeal, TrapZone, Force360 press contour, Tri-Lock press profile
• Operating Temperature (Min): -40 °F
• Operating Temperature (Max): 250 °F
• Maximum Pressure: 700 psi
• Weight: 0.256 lb
• Overall Length: 2.88 in
• Overall Height: 3.15 in
• Overall Width: 1.26 in
• UPC: 30685768448939
• Compatible Tools: Compatible with leading full-size press tools and proprietary Streamline ACR press jaws
