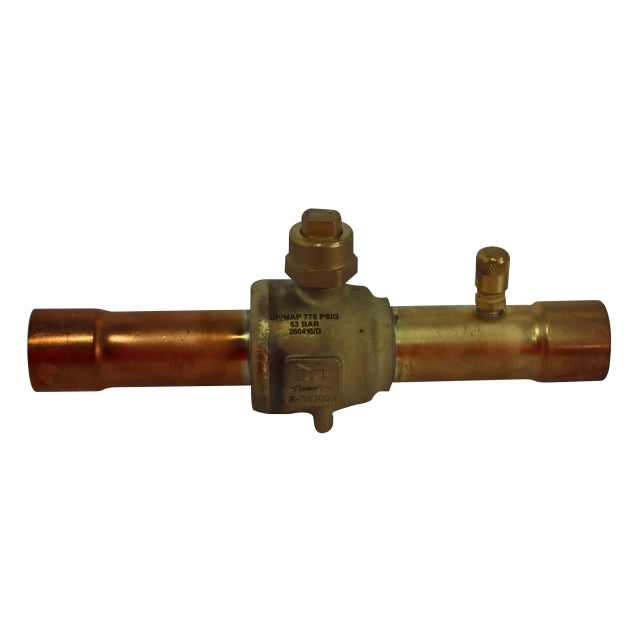

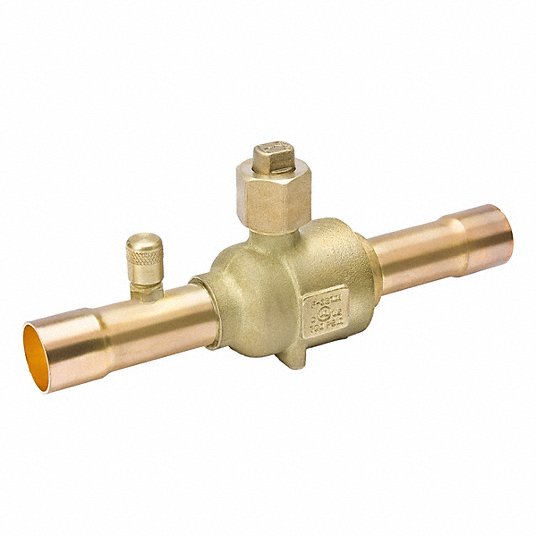

Mueller Refrigeration AQ17865 Ball Valve 1-1/8 OD With Access Port

Product Description

The Mueller Refrigeration AQ17865 ball valve is designed for optimum system performance. Featuring full port construction and enhanced serviceability with a special quick turn cap. Suitable for CFC/HCFC/HFC/HFO refrigerant and oil, refrigeration, and air conditioning applications. The valve has an end-to-end distance of 8.42 inches and a pressure rating of 775 PSIG.

• Bi-Directional Flow
• Ruptureproof Encapsulated Stem
• Internally Equalized Ball Design

Product Highlights

This ball valve features an internally equalized ball, rupture-proof encapsulated stem, and MCM seal technology. It is RoHS compliant and suitable for a variety of applications.

Product Information

Standard Information

• Brand: MUELLER REFRIGERATION
• Manufacturer Part Number: AQ17865
• Country of Origin: USA

Technical Specifications

• Applicable Standard: UL, CUL, CE, ISO 9001
• Application: CFC/HCFC/HFC/HFO Refrigerant and Oil, Refrigeration, Air Conditioning
• Body Material: UNS C37700/CW617 Forged Brass
• Brand: MUELLER
• End To End Distance: 8.42 Inch
• Inclusions/Features: Internally Equalized Ball, Rupture Proof Encapsulated Stem, MCM Seal, Drilled/Tapped, Access Port
• Nominal Size: 1-1/8 Inch x 1-1/8 Inch
• Port Type: Full
• Pressure Rating: 775 PSIG
• Temperature Rating: -40 to 300 Deg F
• Type: Refrigeration Ball Valve
• Additional Information: RoHS Compliant; Port Size 1 Inch; Flow Capacity 54 Cv
• Manufacturer Part Number: AQ17865
• Connection Size: 1 1/8 in
• Coefficient of Volume (Cv): 54.00
• Port Size: 1 in
• Maximum Operating Pressure: 775 psi
• Operating Temperature [Min]: -40 ºF
• Operating Temperature [Max]: 300 ºF
• A: 8.42 in
• B: 4.21 in
• C Min: 0.91 in
• D: 1.00 in
• E: 3.15 in
• F: 1.74 in
• G: 1.5 in
• H: M4 X 0.7
• Includes Access Port: Access Port Included
• Includes Relief Port: Relief Port Not Included
• Inlet Connection Size: 1-1/8 in
• Inlet Connection Gender: Female
• Inlet Connection Type: Sweat
• Outlet Connection Size: 1-1/8 in
• Outlet Connection Gender: Female
• Outlet Connection Type: Sweat
• Minimum Operating Pressure: 0 psi
• Operating Temperature - Minimum: -40 °F
• Operating Temperature - Maximum: 300 °F
• Includes Mounting Holes: Mounting Holes Included
• Mounting Hole Size: M4 x 0.7
• Mounting Hole Type: Metric
• Mounting Hole-to-Hole Distance: 1.5 in
• Adjustment Method: Wrench
• A2L Compatibility: A2L Compatible
• Connection Material: Copper
• Compatible Seal Manufacturer Number: A 17843
• For Refrigerant Group: CFC; HCFC; HFC; HFO
• Weight: 1.7 lb
• Overall Height: 3.2 in
• Overall Width: 1.5 in
• Overall Length: 8.4 in
• Standards: Pressure Equipment Directive 2014/68/EU2014/68/EU; UL/cUL Listed
• Access Port: Yes
• Relief Port: No
• Model: AQ17865
• MPN: AQ17865
• Maximum Working Pressure: 700 PSIG
• Height: 3.15 in
• Length: 8.42 in
• UL Listed: True
• Width: 1.5 in
