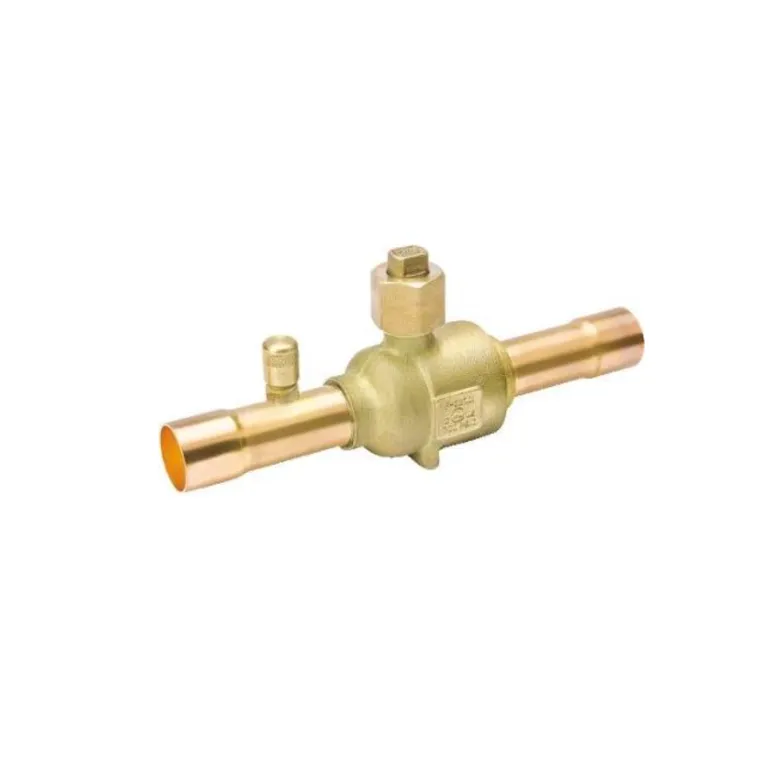

Mueller Refrigeration AQ17862C Ball Valve 5/8 OD With Access Port

Brand: MUELLER REFRIGERATION
SKU: AQ17862C
Availability: In Stock

Ships same day if ordered by 12 pm
$56.47
$56.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MUELLER REFRIGERATION AQ17862C ball valve is a standard type with a 5/8 inch x 5/8 inch nominal size. Constructed from UNS C37700/CW617 forged brass, it features an internally equalized ball and a rupture-proof encapsulated stem. Designed for CFC/HCFC/HFC/HFO refrigerant and oil applications in refrigeration and air conditioning systems.

  • Full port construction
  • Temperature rating of -40 to 300 Deg F
  • Pressure rating of 775 PSIG

Product Highlights

This ball valve offers optimum system performance with enhanced serviceability and a quick turn cap. It is RoHS compliant and adheres to UL, CUL, CE, and ISO 9001 standards.

Product Information

Standard Information

  • Brand: MUELLER REFRIGERATION
  • Manufacturer Part Number: AQ17862C
Technical Specifications
Type
Standard
Port Type
Full
Brand Name
CYCLEMASTER
Application
CFC/HCFC/HFC/HFO Refrigerant and Oil, Refrigeration, Air Conditioning
Nominal Size
5/8 Inch x 5/8 Inch
Body Material
UNS C37700/CW617 Forged Brass
Pressure Rating
775 PSIG
Manufacturer Name
Mueller Refrigeration
Temperature Rating
-40 to 300 Deg F
Applicable Standard
UL, CUL, CE, ISO 9001
End To End Distance
6.35 Inch
Inclusions Features
Internally Equalized Ball, Rupture Proof Encapsulated Stem, MCM Seal, Drilled/Tapped, Access Port
Manufacturer Part Number
AQ17862C
Port Size
0.5 Inch
Flow Capacity
12.1 Cv
Connection Size
5/8 in
Cv
12.10
Kv
10
MAP
775 psi
Operating Temperature [Min]
-40 ºF
Operating Temperature [Max]
300 ºF
Reference Indication
Standard product offering includes drilled/ tapped feature
A
6.35 in
B
3.41 in
C Min
0.5 in
D
0.54 in
E
2.23 in
F
1.35 in
G
0.87 in
H
M4 X 0.7
Operating Temperature
-40 ~ +149 C (-40 ~ +300 F)
Compliance and Standards
UL/cUL Listed, Conforms to Pressure Equipment Directive 2014/68/EU
