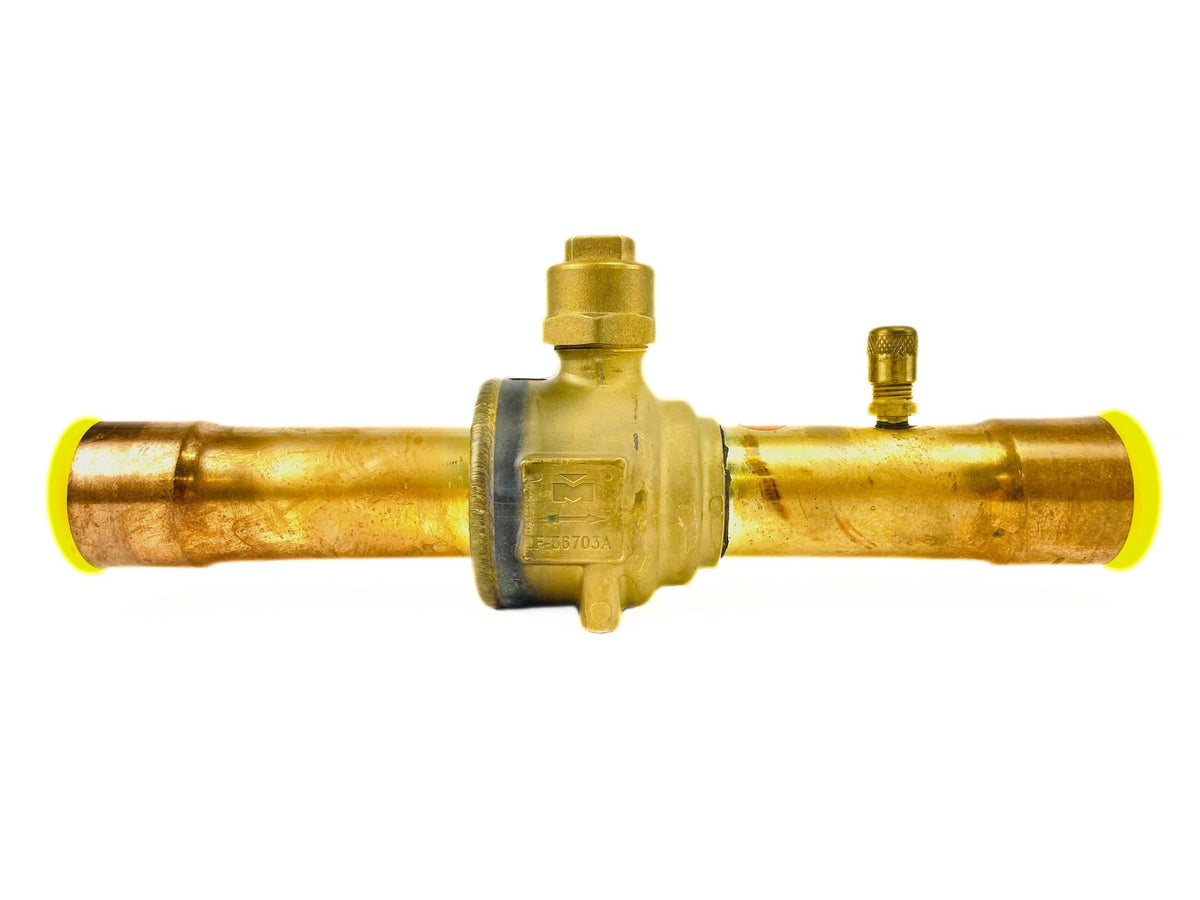

Mueller Refrigeration AC17866 1-3/8 Od Ball Valve W/ Access Port

Product Description

The MUELLER REFRIGERATION AC17866 ball valve is designed for optimum system performance, featuring full port construction and enhanced serviceability. Constructed from UNS C37700/CW617 forged brass, it is suitable for CFC/HCFC/HFC/HFO refrigerant and oil applications in refrigeration and air conditioning systems. This standard type valve has a 1-3/8 Inch nominal size and a 10 Inch end-to-end distance.

• Designed to Provide Optimum System Performance Using Full Port Construction and Enhanced Serviceability with a Special Quick Turn Cap
• Features Bi-Directional Flow and Ruptureproof Encapsulated Stem
• RoHS Compliant with Internally Equalized Ball Design and MCM Seal Technology

Product Highlights

Full port ball valve with internally equalized ball, rupture proof encapsulated stem, and MCM seal for refrigeration and air conditioning applications.

Product Information

Standard Information

• Brand: MUELLER REFRIGERATION
• Manufacturer Part Number: AC17866

Technical Specifications

• Type: Standard
• Nominal Size: 1-3/8 Inch x 1-3/8 Inch
• End To End Distance: 10 Inch
• Body Material: UNS C37700/CW617 Forged Brass
• Port Type: Full
• Temperature Rating: -40 to 300 Deg F
• Pressure Rating: 775 PSIG
• Inclusions/Features: Internally Equalized Ball, Rupture Proof Encapsulated Stem, MCM Seal, Access Port
• Application: CFC/HCFC/HFC/HFO Refrigerant and Oil, Refrigeration, Air Conditioning
• Applicable Standard: UL, CUL, CE, ISO 9001
• Additional Information: RoHS Compliant; Port Size 1.25 Inch; Flow Capacity 89.1 Cv
• Brand Name: CYCLEMASTER
• Manufacturer Name: Mueller Refrigeration
• Manufacturer Part Number: AC17866
• Port Size: 1.25 Inch
• Flow Capacity: 89.1 Cv
