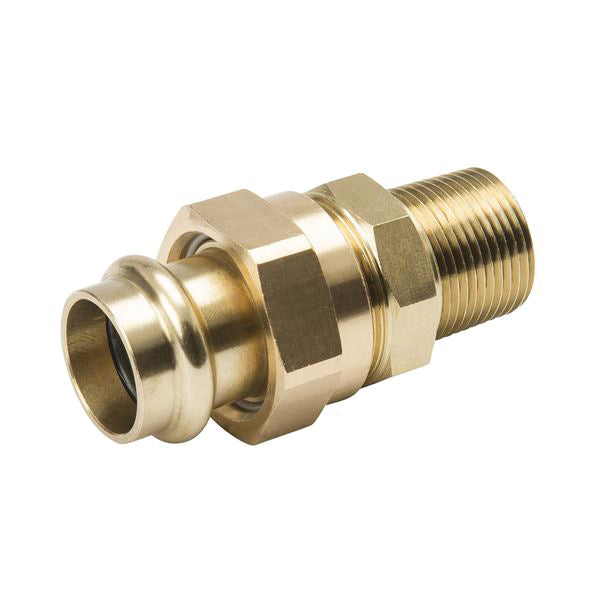

Mueller PF11210 Streamline PRS PF 11210 Small Union 1/2 in Press x MNPT

Product Description

The Mueller PF11210 is a small union fitting designed for plumbing and mechanical applications. This product features a press x MNPT connection style and is made from lead-free brass. It is suitable for various applications including potable water, hydronic heating, and compressed air.

• Fast and easy installation
• Flameless, permanent connections
• Compatible with a wide range of fittings

Product Highlights

This fitting offers quick connections with minimal tools, enhancing work efficiency in both residential and commercial settings.

Product Information

Standard Information

• Brand: Mueller
• Part Number: R3079

Technical Specifications

• Application: Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air (200 psi Max), Non-Medical Gases (140 psi Max), Low Pressure Steam (15 psi Max), Vacuum (24.5 in Mercury Max at 68 deg F), Mechanical Systems, Residential and Commercial Plumbing
• Dimensions: 2.78 in L x 0.98 in W x 1.17 in H
• End Style: Press x MNPT
• Fitting/Connector Type: Union
• Material: Brass
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61-G/372, Tier II PDA, Class III Applications, UPC Listed and USA Lead Free Compliant - Wetted Surface Contains Less than 0.25% Lead by Weight
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Type: Small
• Warranty: 50 Years Limited
