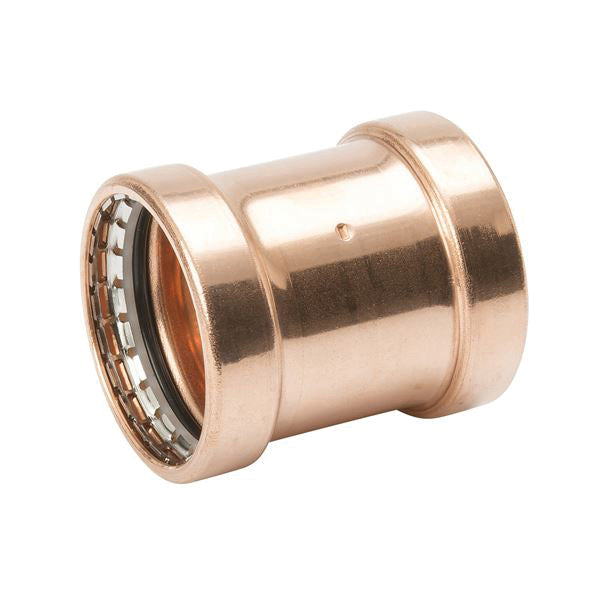

Mueller PF10152 Large Coupling With Staked Stop, Press, 3 in

Product Description

The Mueller PF10152 Large Coupling is designed for easy connection in plumbing applications. This coupling is made of wrought copper and features a press connection style, allowing for quick and flameless installation.

• Simple installation process
• Durable design for long-term use
• Compatible with various fittings

Product Highlights

This product delivers a reliable connection for various systems including potable water and compressed air.

Product Information

Standard Information

• Brand: Mueller
• Part Number: PF10152

Technical Specifications

• Application: Potable Water, Hydronic Heating, Compressed Air, Non-Medical Gases, Low Pressure Steam
• Dimensions: 3.7 in L x 3.69 in W x 3.69 in H
• End Style: Press
• Fitting Type: Coupling
• Material: Wrought Copper
• Mfg Standards: ASME B16.51, CSA TIL-MSE-13, IAPMO PS-117
• Nominal Size: 3 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Warranty: 50 Years Limited
