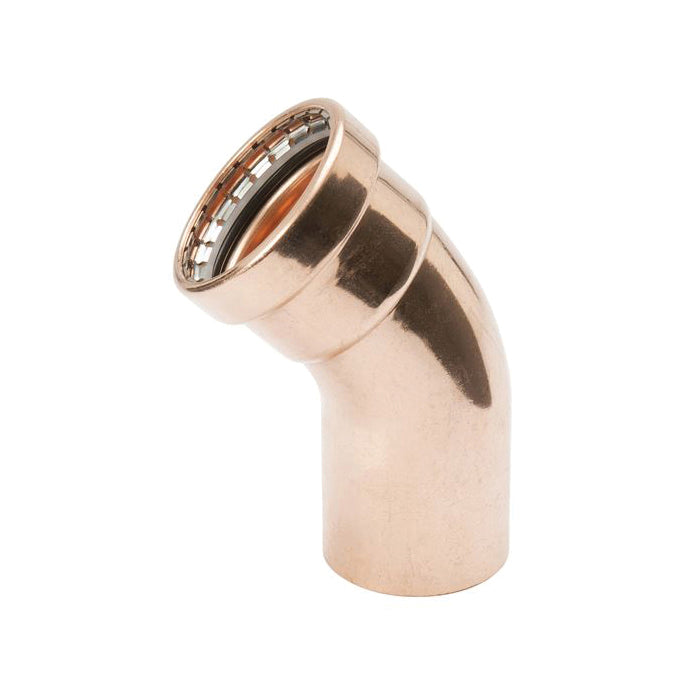

Mueller PF03363 Streamline PRS Large 45 Deg Street Elbow Fitting x Press

Product Description

The Mueller PF03363 Streamline PRS is a large 45-degree street elbow fitting designed for press connections. Made from wrought copper, it is suitable for various plumbing applications.

• Fast and easy to use.
• Flameless connection method.
• Large selection of fittings available.

Product Highlights

This fitting provides a permanent connection and a professional appearance while requiring less equipment. It is an environmentally friendly option that ensures compatibility with different fittings and tools.

Product Information

Standard Information

• Brand: Mueller
• MPN: PF03363

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air (200 psi Max), Non-Medical Gases (140 psi Max), Low Pressure Steam (15 psi Max), Vacuum (24.5 in Mercury Max at 68 deg F)
• Dimensions: 4.51 in L x 3.18 in W x 6.43 in H
• End Style: Fitting x Press
• Fitting/Connector Type: 45 deg Elbow
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61-G/372
• Nominal Size: 2-1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Warranty: 50 Years Limited
