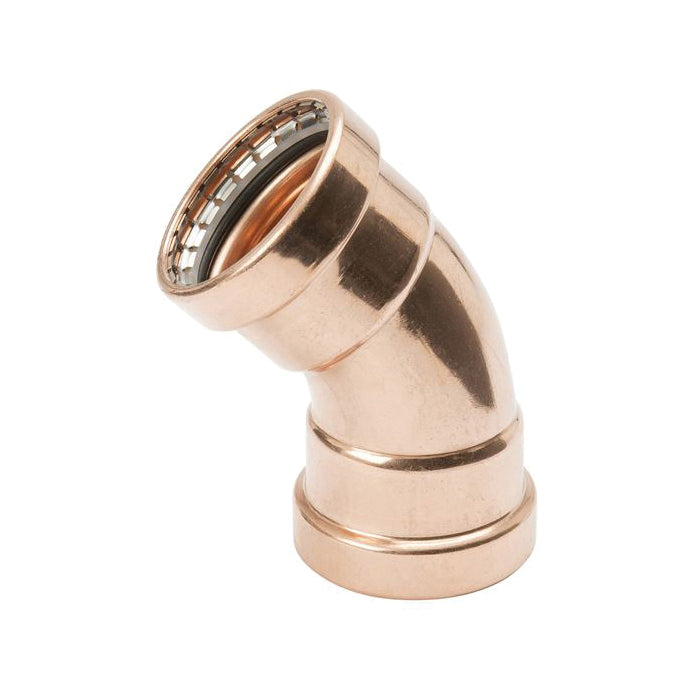

Mueller PF03073 Streamline PRS PF 03073 Large 45 Deg Elbow, 4 In, Press, Wrought Copper

Product Description

The Mueller PF03073 Streamline PRS is a large 45-degree elbow fitting made from wrought copper. It is designed for use with press connections. This fitting is suitable for various applications including potable water and hydronic heating, offering reliable performance.

• Fast and easy to install
• Flameless connection method
• Permanently secures fittings without additional equipment

Product Highlights

The Streamline PRS provides a consistent professional appearance and is environmentally friendly. It is compatible with various fittings and tools.

Product Information

Standard Information

• Brand: Mueller
• Part Number: PF03073

Technical Specifications

• Application: Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air (200 psi Max), Non-Medical Gases (140 psi Max), Low Pressure Steam (15 psi Max), Vacuum (24.5 in Mercury Max at 68 deg F), Mechanical Systems, Residential and Commercial Plumbing
• Dimensions: 6.93 in L x 4.68 in W x 8.83 in H
• End Style: Press
• Fitting/Connector Type: 45 deg Elbow
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61-G/372, Tier II PDA, Class III Applications, UPC Listed and USA Lead Free Compliant - Wetted Surface Contains Less than 0.25% Lead by Weight
• Nominal Size: 4 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Type: Large
• Warranty: 50 Years Limited
