Mueller PF03067 Streamline PRS 45 Deg Large Elbow, 3 in Press Wrought Copper

Product Description

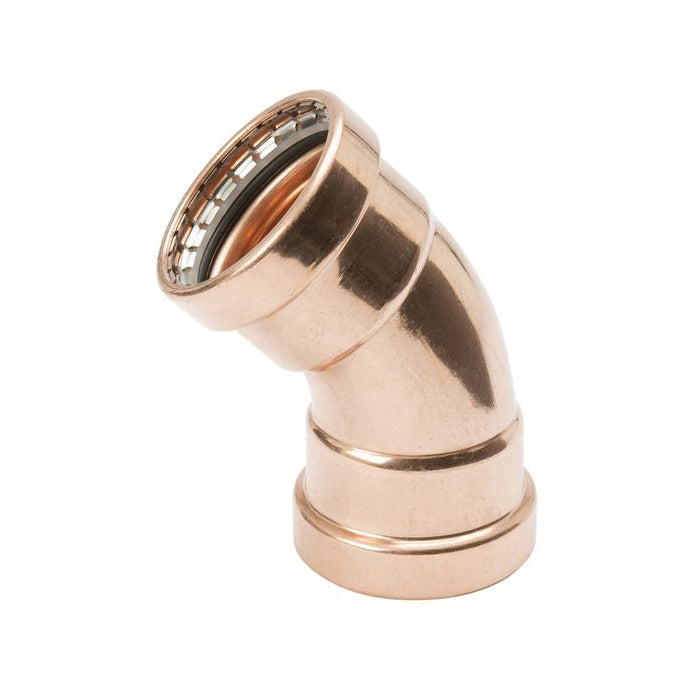

The Mueller PF03067 is a 45-degree large elbow fitting designed for efficient plumbing connections. Made from wrought copper, this fitting has a nominal size of three inches and is intended for use in various applications including potable water and hydronic heating systems.

• Fast and easy to use.
• Flameless connections.
• Environmentally friendly system.

Product Highlights

Utilizes a press connection type, making installation efficient and safe. Suitable for both residential and commercial plumbing solutions.

Product Information

Standard Information

• Brand: Mueller
• MPN: PF03067

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air (200 psi Max), Non-Medical Gases (140 psi Max), Low Pressure Steam, Vacuum (24.5 in Mercury Max at 68 deg F)
• Dimensions: 5.52 in L x 3.69 in W x 7.1 in H
• End Style: Press
• Fitting/Connector Type: 45 deg Elbow
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, ANSI/NSF 61-G/372, UPC Listed, Lead Free Compliant
• Nominal Size: 3 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Warranty: 50 Years Limited
