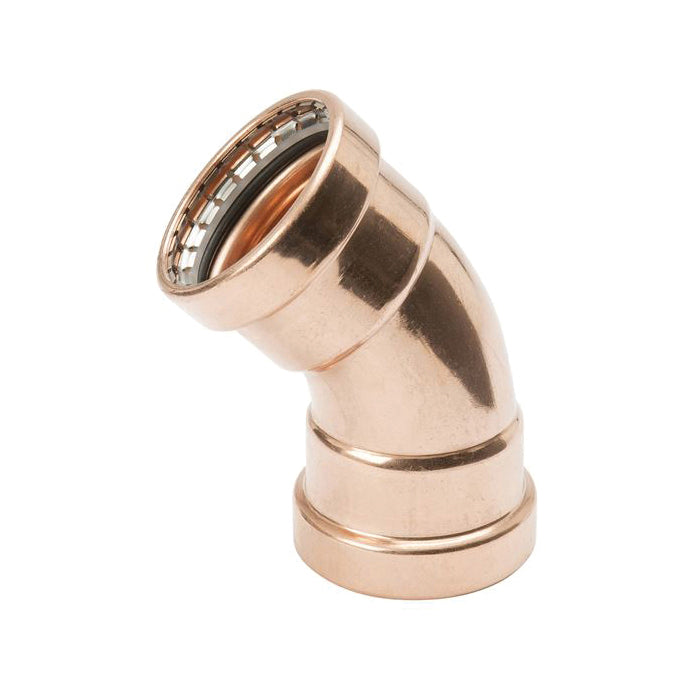

Mueller PF03063 Streamline PRS PF 03063 Large 45 deg Elbow 2-1/2 in PF 03063

Product Description

The Mueller PF03063 is a large 45 degree elbow fitting designed for use in various plumbing applications. This fitting is made from durable wrought copper and designed as a press fitting. It is suitable for connections in potable water, hydronic heating, and compressed air systems.

• Fast and easy to install
• Flameless and permanent connections
• Compatible with a large selection of fittings

Product Highlights

This elbow fitting provides a consistent professional appearance and requires less equipment for installation. It is also part of an environmentally friendly system.

Product Information

Standard Information

• Brand: Mueller
• Part Number: PF03063

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Low Pressure Steam, Non-Medical Gases
• Dimensions: 4.79 in L x 3.18 in W x 6.19 in H
• End Style: Press
• Fitting/Connector Type: 45 deg Elbow
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, CSA TIL-MSE-13, UPC Listed
• Nominal Size: 2-1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Warranty: 50 Years Limited
