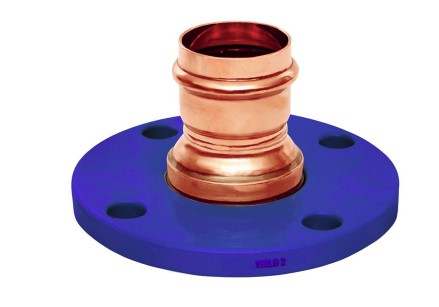

Mueller PF02980 Small Composite Flange, 2 in, Wrought Copper, Press, 150 lb

Product Description

The Mueller PF02980 is a small composite flange made from wrought copper. It is designed for use in plumbing and mechanical applications. This flange features a press connection for ease of installation and is rated for pressures up to 200 psi.

• Flameless joining system
• Suitable for potable water and hydronic heating
• Environmental compliance with lead-free standards

Product Highlights

This product is versatile for various plumbing needs, ensuring durable and reliable connections.

Product Information

Standard Information

• Brand: Mueller
• Part Number: R3075

Technical Specifications

• Application: Potable water, hydronic heating, chilled water, compressed air, low-pressure steam, vacuum.
• Bolt Circle Diameter: 4.76 inches
• Connection Type: Press
• Dimensions: 6 inches L x 6 inches W x 3.44 inches H
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, CSA, IAPMO PS-117, NSF/ANSI 61-G/372.
• Nominal Size: 2 inches
• Pressure Class: 150 lb
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees F
• Warranty: 50 years limited
