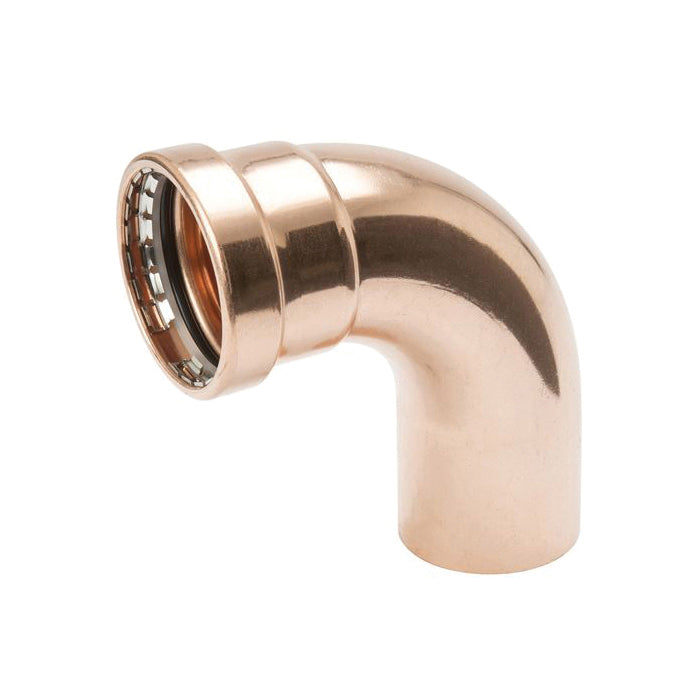

Mueller PF02395 Streamline PRS Copper Press 90 Degree Elbow 4 in

Product Description

The Mueller PF02395 is a Streamline PRS Copper Press fitting designed for plumbing applications. It features a long radius design ideal for various installations.

• Fast and easy to use
• Flameless installation
• Permanent connections

Product Highlights

This fitting supports a range of applications from potable water to mechanical systems, ensuring reliability during use.

Product Information

Standard Information

• Brand: Mueller
• Part Number: R2884

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air (200 psi Max), Non-Medical Gases (140 psi Max), Low Pressure Steam (15 psi Max)
• Dimensions: 11.83 inches L x 4.68 inches W x 8.97 inches H
• End Style: Fitting x Press
• Fitting/Connector Type: 90 Degree Elbow
• Material: Wrought Copper
• Manufacturing Standards: ASME B16.51, CSA TIL-MSE-13, UPC Listed
• Nominal Size: 4 inches
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees F
• Warranty: 50 Years Limited
