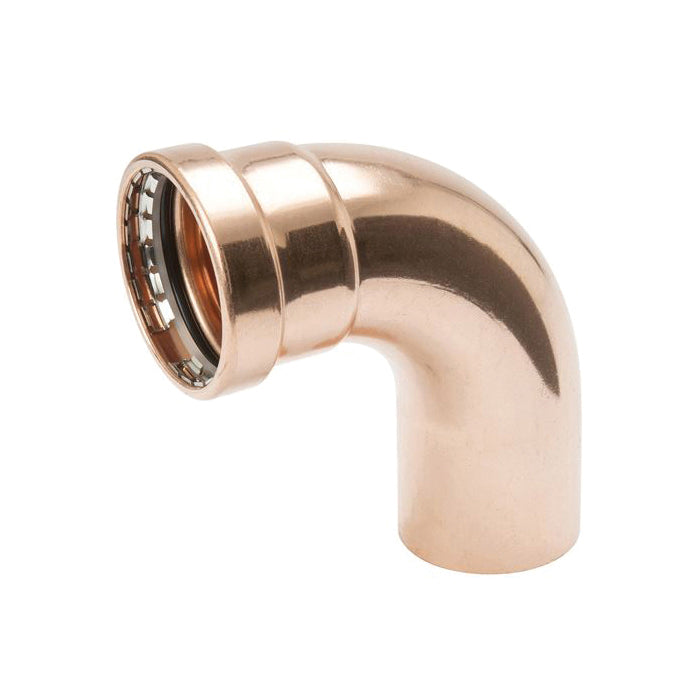

Mueller PF02368 Streamline PRS PF 02368 Long Radius Large 90 Deg Street Elbow 3 in Replacement MPN

Product Description

The Mueller PF02368 is a Streamline PRS Long Radius Large 90 Degree Street Elbow designed for use in plumbing systems. This fitting is suitable for various applications including potable water and hydronic heating.

• Flameless connection method
• Compatible with a wide range of fittings and tools
• Durable wrought copper construction

Product Highlights

This elbow fitting facilitates smooth transitions in plumbing systems and is easy to install, reducing the need for additional tools. It features a long radius design that minimizes flow restrictions.

Product Information

Standard Information

• Brand: Mueller
• MPN: PF02368

Technical Specifications

• Application: Potable water, hydronic heating, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), low pressure steam (15 psi max), vacuum (24.5 in mercury max at 68 deg F), mechanical systems, residential and commercial plumbing
• Dimensions: 9.81 in L x 3.69 in W x 7 in H
• End Style: Fitting x Press
• Fitting/Connector Type: 90 deg elbow
• Material: Wrought copper
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61-G/372, Tier II PDA, Class III Applications, UPC Listed, and USA Lead Free Compliant - Wetted surface contains less than 0.25% lead by weight
• Nominal Size: 3 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Type: Long Radius Large
• Warranty: 50 years limited
