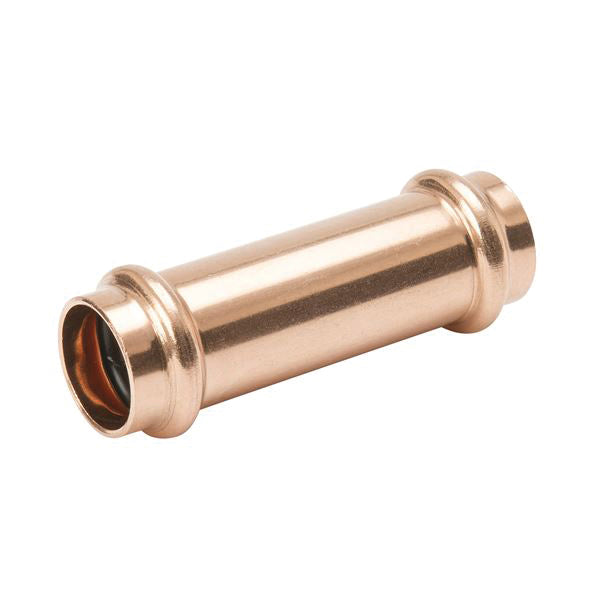

Mueller PF01950 Streamline PRS PF 01950 Small Extended Coupling 1/2 in No Stop

Product Description

The Mueller PF01950 Streamline PRS Small Extended Coupling is designed for plumbing applications. This coupling features a press fitting style and is made from wrought copper for durability. It has a nominal size of one half inch.

• Application for potable water and hydronic heating.
• Temperature range from negative twenty to two hundred fifty degrees Fahrenheit.
• Permanent connections without the need for flames or soldering.

Product Highlights

This fitting is compatible for residential and commercial plumbing systems. It is part of an environmentally friendly system that is easy to use and requires less equipment.

Product Information

Standard Information

• Brand: Mueller
• Part Number: R2820

Technical Specifications

• Application: Potable Water, Hydronic Heating, Compressed Air, Non-Medical Gases, Low Pressure Steam, Residential and Commercial Plumbing
• Dimensions: 2.95 inches long x 0.93 inches wide x 0.93 inches high
• End Style: Press
• Fitting/Connector Type: Coupling
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61
• Nominal Size: 1/2 inch
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Warranty: 50 Years Limited
