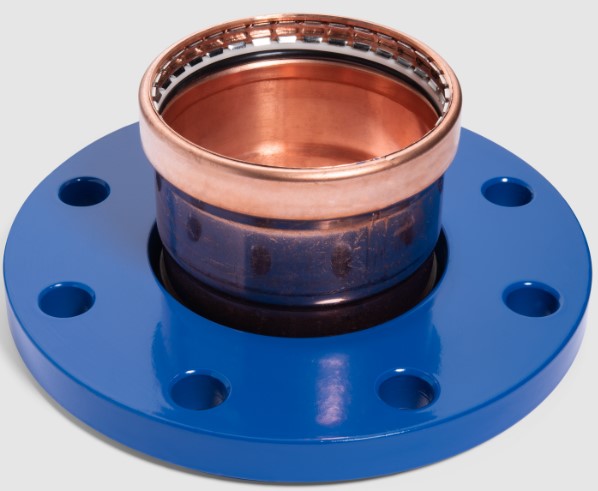

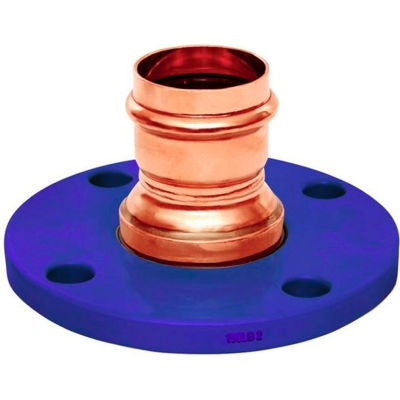

Mueller PF01940 Streamline PRS Large Composite Flange, 4 in, Wrought Copper, Press, 150 lb

Product Description

The Mueller PF01940 is a Streamline PRS large composite flange designed for plumbing applications. This fitting is made from wrought copper and accommodates various media types. It features a press connection for efficient and secure installation.

• Fast and easy installation process
• Environmentally friendly system
• Large selection of compatible fittings

Product Highlights

Ideal for potable water and hydronic heating, the flange ensures a stable and lasting connection.

Product Information

Standard Information

• Brand: Mueller
• MPN: PF01940

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gases, Low Pressure Steam, Vacuum Systems
• Dimensions: 8.86 in L x 8.86 in W x 3.68 in H
• Material: Wrought Copper
• Pressure Class: 150 lb
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Warranty: 50 Years Limited
