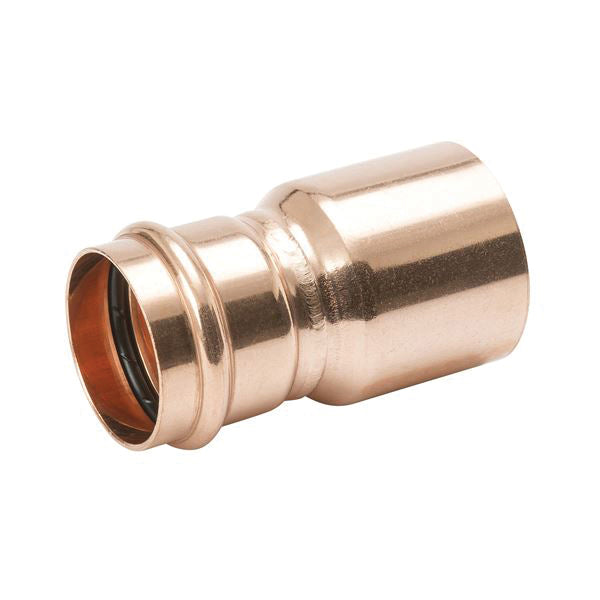

Mueller PF01368 Streamline PRS Large Fitting Reducer, 2-1/2 x 1-1/2 in

Product Description

The Mueller PF01368 is a Streamline PRS large fitting reducer made of wrought copper. It features a fitting x press connection that simplifies plumbing tasks and provides reliable performance in various applications. This reducer is designed for use with potable water, hydronic heating, chilled water, and more.

• Flameless joining technology
• Permanent connections
• Environmentally friendly system

Product Highlights

Streamline PRS fittings promote ease of use and are compatible with a wide range of tools and fittings.

Product Information

Standard Information

• Brand: Mueller
• MPN: PF01368

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air up to 200 psi, Non-Medical Gases up to 140 psi, Low Pressure Steam up to 15 psi, Vacuum up to 24.5 in Mercury at 68 F, Residential and Commercial Plumbing
• Dimensions: 4.72 in L x 2.62 in W x 2.62 in H
• End Style: Fitting x Press
• Fitting/Connector Type: Reducer
• Material: Wrought Copper
• Manufacturing Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61-G/372, USA Lead Free Compliant
• Nominal Size: 2-1/2 x 1-1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 F
• Warranty: 50 Years Limited
