Mueller PF 02802 Streamline PRS Flange 3 in Replacement MPN

Product Description

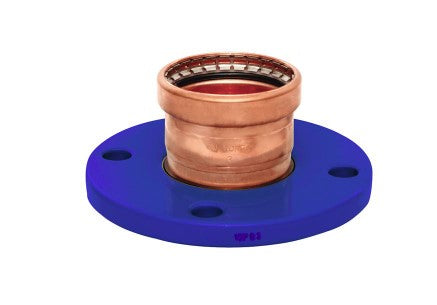

The Mueller PF02802 is a Streamline PRS large composite flange. It is designed for use in various plumbing and mechanical installations. This flange features a three-inch size, is made of wrought copper, and supports a pressure rating of up to 200 psi.

• Flameless and easy to use
• Permanent connections
• Environmentally friendly design

Product Highlights

This flange ensures a reliable connection without the need for flame or additional power tools, simplifying the installation process.

Product Information

Standard Information

• Brand: Mueller
• MPN: PF02802

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gases, Low Pressure Steam, Vacuum, Mechanical Systems, Residential and Commercial Plumbing
• Bolt Circle Diameter: 6.3 inches
• Connection Type: Press
• Dimensions: 7.87 inches L x 7.87 inches W x 3.23 inches H
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61-G/372, UPC Listed
• Nominal Size: 3 inches
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Warranty: 50 Years Limited
