Mueller Industries W3026 5/8 Copper Sweat 45-Degree Elbow

Product Description

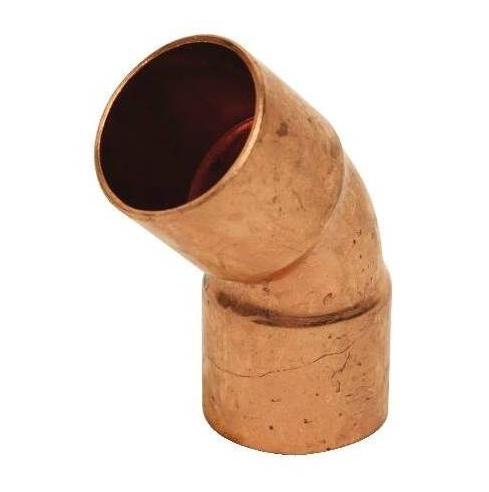

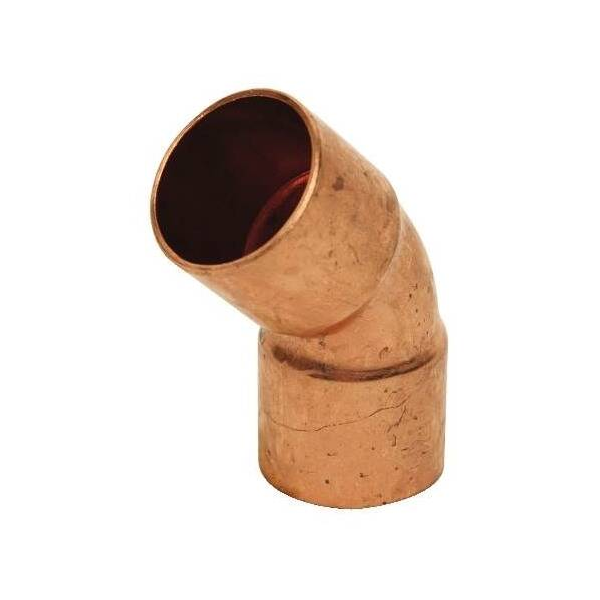

The Mueller Industries W3026 is a 45-degree elbow fitting made from wrot copper. This fitting has a cup (female solder) end type on both ends, each with a diameter of one-half inch. It is designed for use in above-ground potable water supply systems. The overall length of this product is one point five two inches, the height is one point one nine inches, and the width is zero point six nine inches.

• Constructed from high-grade wrot copper.
• Meets ASME standards B16.15, B16.18, B16.22, B16.24, B16.50 and B1.20.1.
• Suitable for use in potable water systems.

Product Highlights

Designed for durability and compliance, the W3026 ensures proper flow and connection in plumbing systems.

Product Information

Standard Information

• Material: Wrot Copper
• Weight: 0.04 lb

Technical Specifications

• Overall Length: 1.52 inches
• Overall Height: 1.19 inches
• Overall Width: 0.69 inches
• End Type: C - Cup (Female Solder)
• End Size: 1/2 inch
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Style: WE-504
• Quantity per Bag: 50
