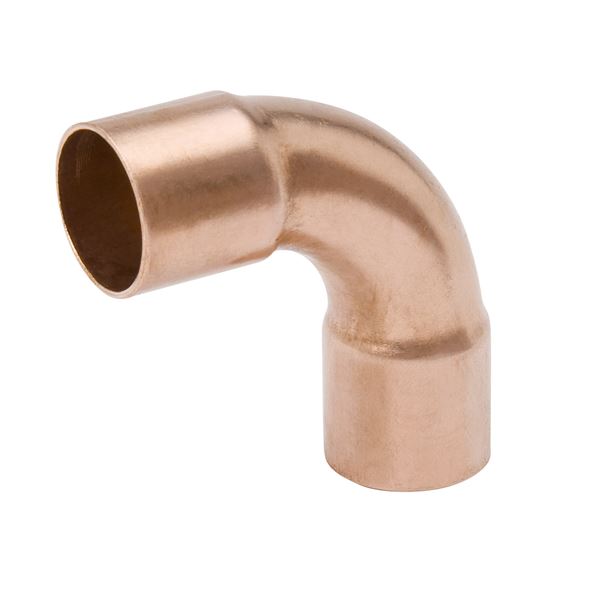

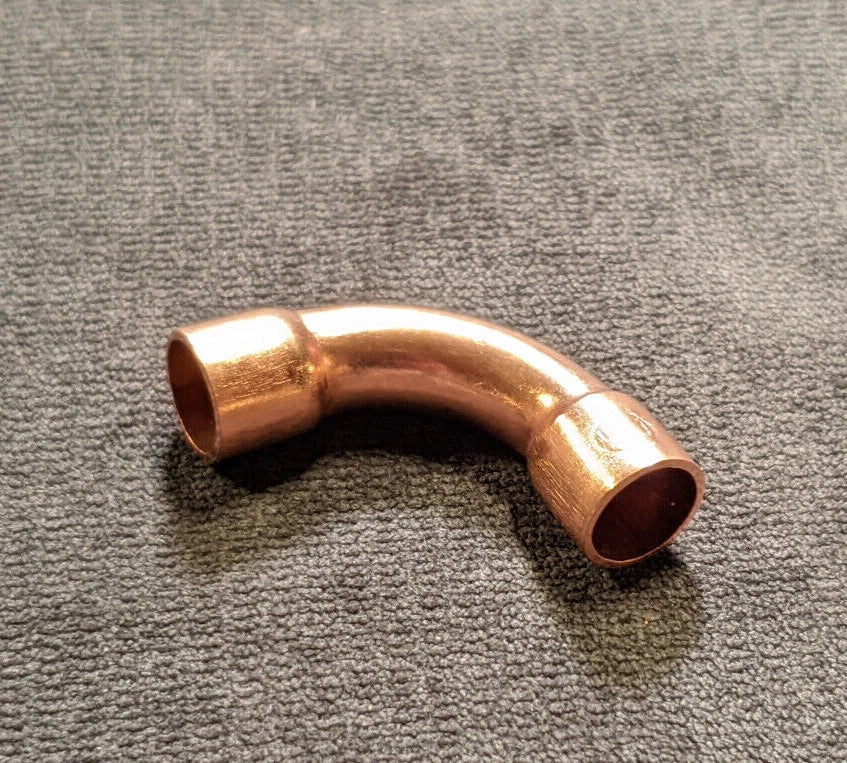

Mueller Industries W2716 3/8 Copper Sweat 90-Degree Elbow

Product Description

The Mueller Industries W2716 is a 90-degree elbow fitting made from UNS C12200 copper. This fitting is designed for female soldered end connections, making it suitable for potable water and HVAC applications. The elbow can handle pressures up to 700 PSI at 250 degrees Fahrenheit and meets multiple safety standards.

• Female soldered connections on both ends.
• Rated for 700 PSI at 250 degrees Fahrenheit.
• Conforms to ASME, MSS, NSF, and UL standards.

Product Highlights

This fitting is ideal for various plumbing and HVAC uses where a 90-degree turn is required.

Product Information

Standard Information

• Brand: Mueller Industries
• MPN: W2716

Technical Specifications

• Angle: 90 Degree
• End Connection: Female Soldered x Female Soldered
• Pressure Rating: 700 PSI at 250 Deg F
• Process: Wrot
• Carton Quantity: 50 per Inner Pack, 1700 per Master Pack
• Size A: 1/4 Inch
• Size B: 1/4 Inch
• Temperature Rating: 250 Deg F
• Type: Long Radius, Straight
• Material: UNS C12200 Copper
• Outer Diameter: 3/8 Inch
