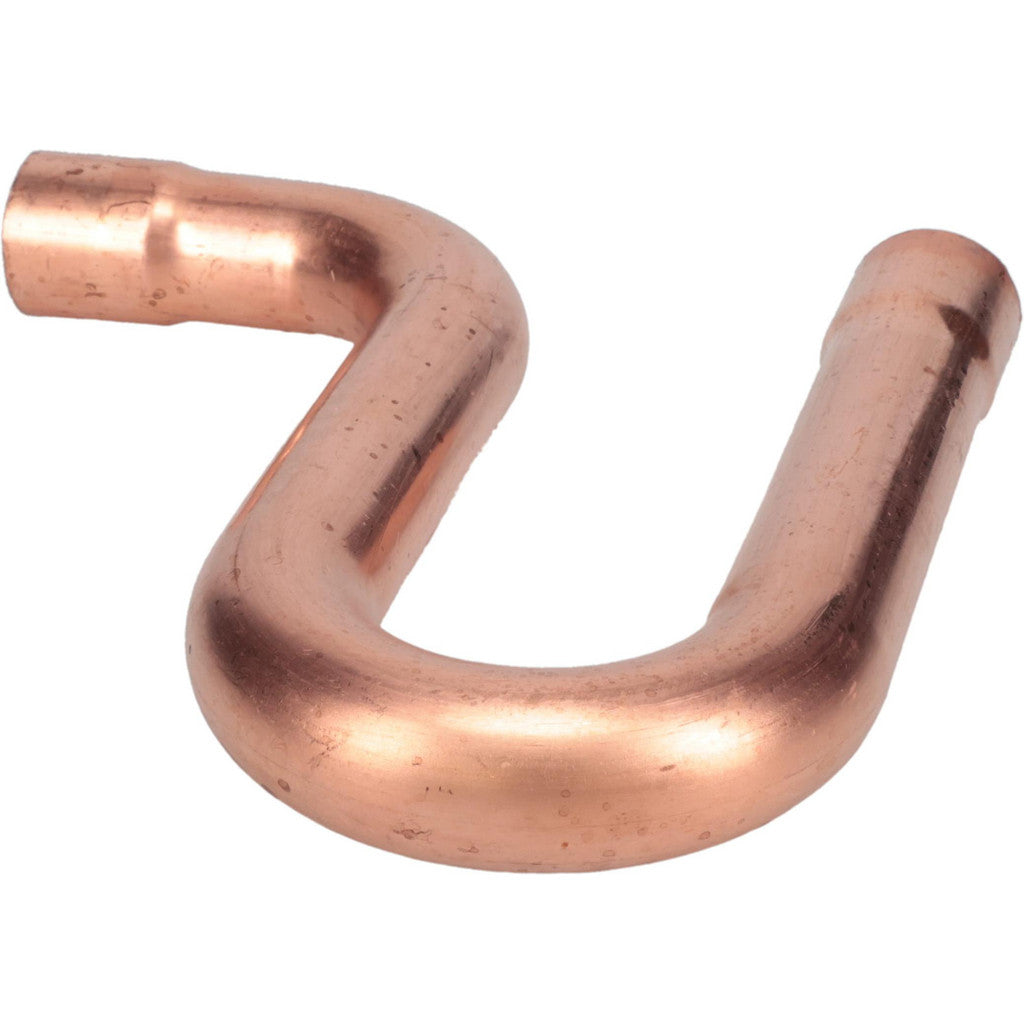

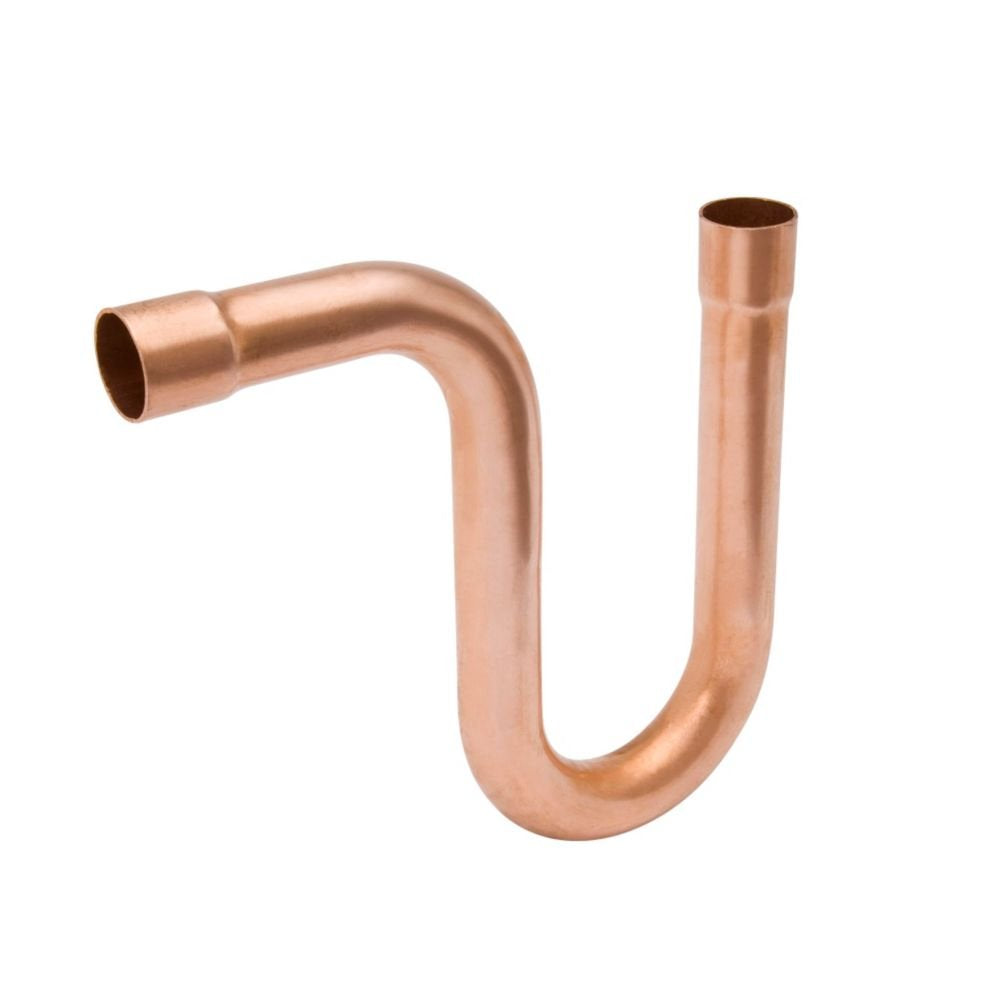

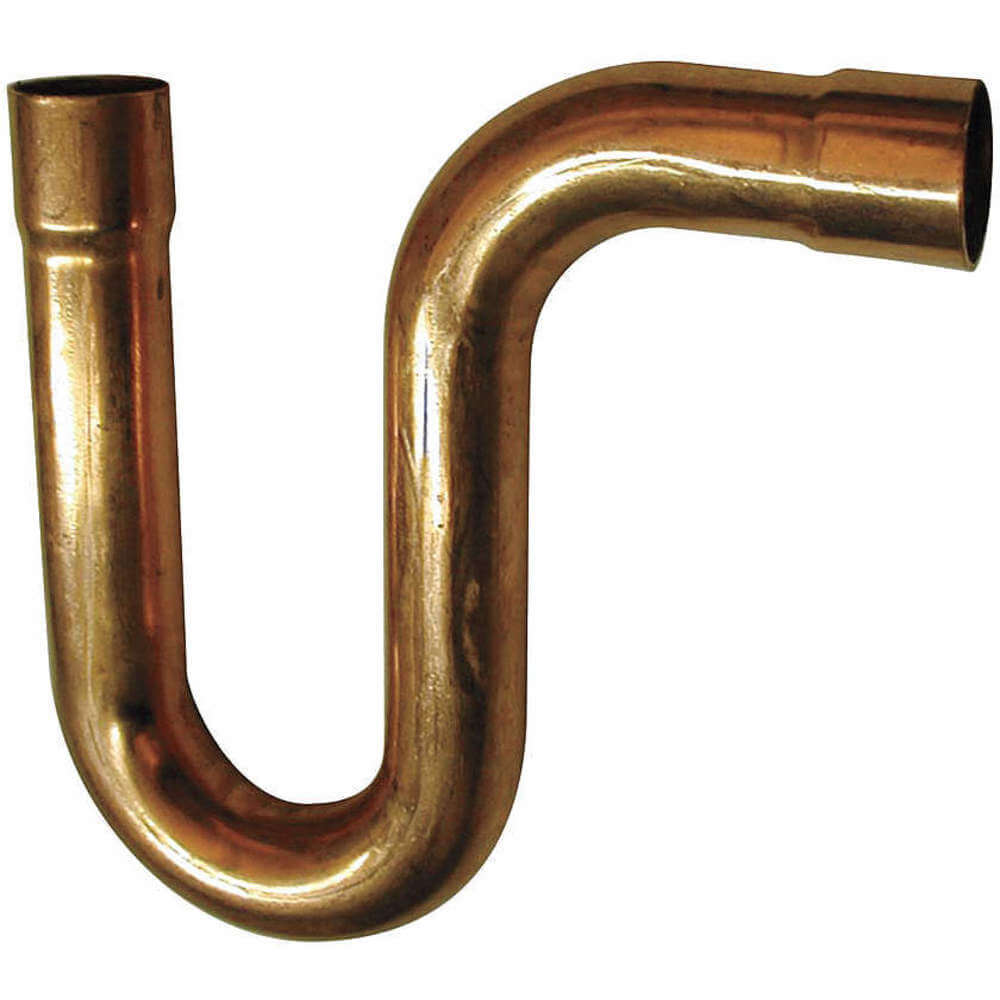

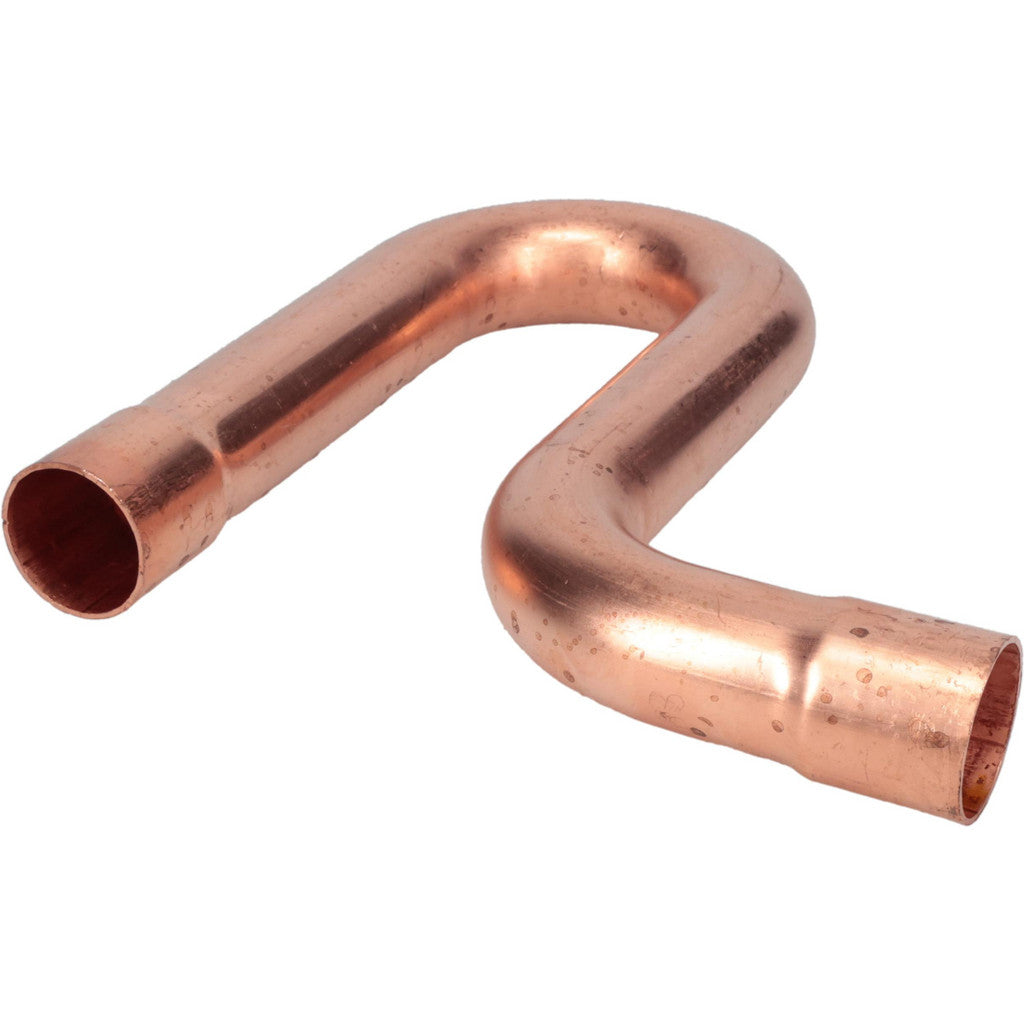

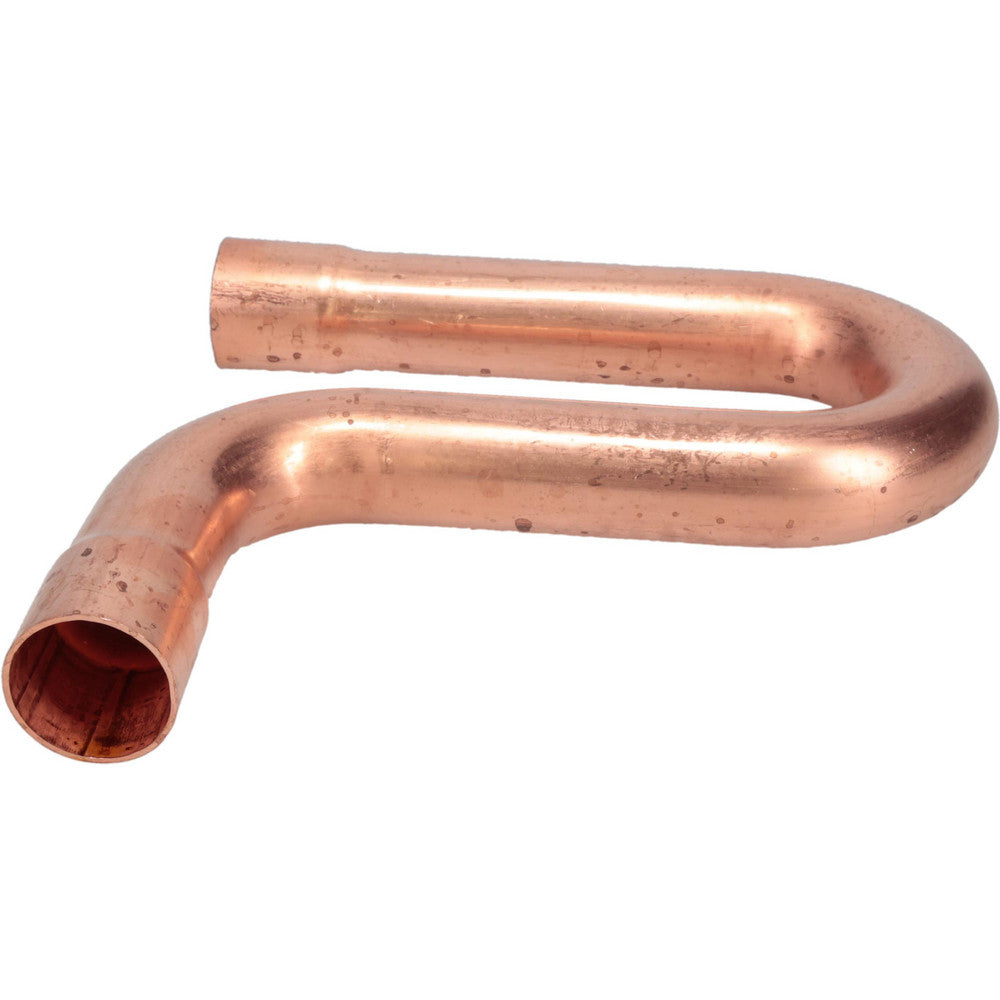

Mueller Industries W 61001 Copper P-trap 1 (1-1/8)

Product Description

Mueller Industries W 61001 is a wrought copper suction-line P-trap with C x C (cup x cup) solder-joint connections for 1 in copper tube (1-1/8 in outside diameter). It is rated to 408 psi at 100�F and has an operating temperature range of -20�F to 400�F. The fitting meets applicable ASME standards and NSF 61G and is intended for above-ground potable water and suction-line applications.

• Wrought copper construction with C x C solder-joint (cup x cup) connections for 1 in tubing (1-1/8 in OD).
• Pressure and temperature rating: 408 psi @ 100�F; -20�F to 400�F; meets ASME B16 series and NSF 61G standards; ISO 9001 manufactured.
• Physical: overall length 8.21 in, overall height 7.83 in, overall width 1.21 in; weight approximately 0.87 lb; end type: cup (female solder).

Product Highlights

Wrought copper suction-line P-trap, 1 in C x C solder connections, 408 psi @ 100�F, ASME and NSF 61G compliant.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: W 61001
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Industries
• Manufacturer Part Number: W 61001
• Material: Wrought copper
• Fitting Type: Suction line P-trap
• Fitting Size: 1 in
• Tube Size: 1 in
• Tube Outside Diameter: 1-1/8 in
• End Connection: C x C (cup x cup), solder joint
• End Type: Cup (female solder)
• Style: Solder joint
• Max Pressure: 408 psi @ 100�F
• Temperature Range: -20�F to 400�F
• Standards: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Certifications: NSF 61G; ISO 9001 (manufactured in an ISO 9001 registered facility)
• Application: Above-ground potable water supply systems; suction-line service
• Overall Length: 8.21 in
• Overall Height: 7.83 in
• Overall Width: 1.21 in
• Weight: 0.87 lb
• Country of Origin: United States
• UPC: 685768213826
