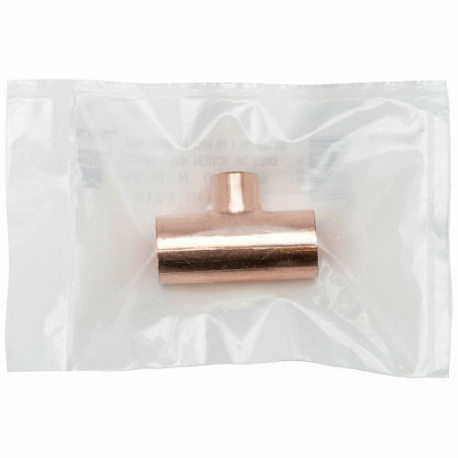

Mueller Industries W 40107CB Streamline Copper Pressure Fittings Clean and Bagged, Cast Bronze, Cup X Cup X Cup

Product Description

The Mueller Industries W 40107CB is a Streamline copper pressure fitting, clean and bagged, made from cast bronze with Cup X Cup X Cup connections. This fitting is designed for medical gas applications. It adheres to ASME B1.20.1, B16.15, B16.18, B16.22, B16.24, and B16.50 standards.

• Made from cast bronze for durability
• Features Cup x Cup x Cup connection types
• Suitable for medical gas applications

Product Highlights

The Mueller Industries Streamline fitting ensures reliable connections in demanding environments, with a maximum working pressure of 700 psi and a maximum operating temperature of 250°F.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: W 40107CB

Technical Specifications

• Item: Fitting
• Application: Medical gas
• Fitting Material: Cast bronze
• Fitting Side A Connection Type: Cup
• Fitting Side A Copper Tube Size: 2"
• Fitting Side A Pipe Outside Diameter: 2 1/8 "
• Fitting Side B Connection Type: Cup
• Fitting Side B Copper Tube Str: 2"
• Fitting Side B Pipe Outside Diameter: 2 1/8 "
• Fitting Side C Connection Type: Cup
• Fitting Side C Copper Tube Str: 1 / 2 "
• Max. Working Pressure: 700 psi
• Maximum Operating Temperature: 250 F
• Overall Length: 3 5/16 "
• Standards: Asme B1.20.1, Asme B16.15, Asme B16.18, Asme B16.22, Asme B16.24, Asme B16.50
