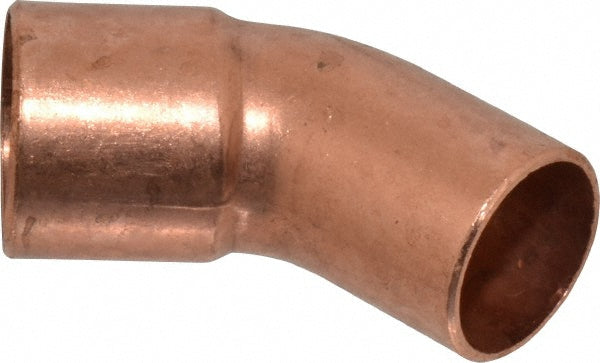

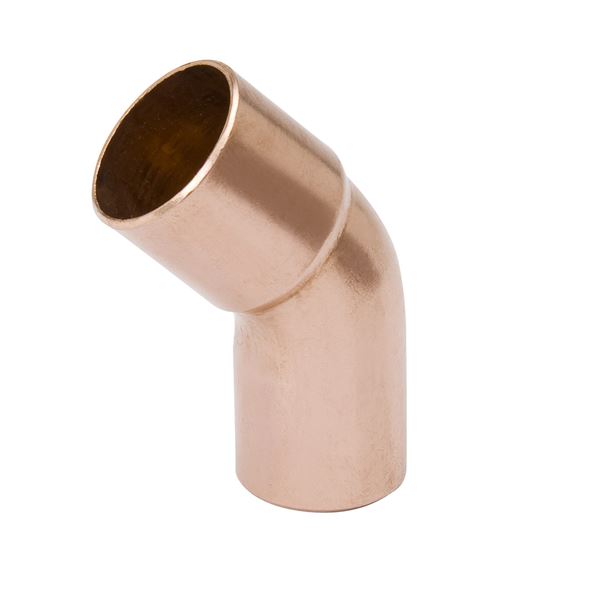

Mueller Industries W-03334 45° Elbow Street FTG x C 3/4 in

Product Description

Mueller Industries W-03334 is a 45° street elbow made from wrot copper, providing a 3/4 in FTG (male solder) to 3/4 in C (cup female solder) solder-joint connection for above-ground potable water supply systems. The fitting meets multiple ASME standards and NSF 61G, has an outside diameter of 7/8 in, and overall dimensions of 2.62 in length, 1.76 in height, and 0.95 in width.

• Constructed of wrot copper for solder-joint plumbing connections; style: solder joint
• End connection FTG x C (3/4 in) with outside diameter 7/8 in; overall length 2.62 in
• Complies with ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61G

Product Highlights

45° wrot copper street elbow, 3/4 in FTG x C solder-joint connection, ASME and NSF 61G compliant.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: W-03334
• Country of Origin: UNITED STATES

Technical Specifications

• Brand: Mueller Industries
• Manufacturer Part Number: W-03334
• Model / Style: WE-505
• Fitting Type: 45 Degree Elbow
• Angle: 45°
• Fitting Size: 3/4 in
• Style: Solder Joint
• End Connection: FTG x C (male solder x cup female solder)
• Material: Wrot copper
• Outside Diameter: 7/8 in
• Weight: 0.09 lb
• Overall Length: 2.62 in
• Overall Height: 1.76 in
• Overall Width: 0.95 in
• Standards: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G
• Operating Pressure: See CDA - Copper Fitting Pressure/Temperature Ratings
• Operating Temperature: See CDA - Copper Fitting Pressure/Temperature Ratings
• End Type: C - Cup (Female Solder)
• Second End Type: FTG - Fitting (Male Solder)
• Country of Origin: United States
• UNSPSC: 40175305
