Mueller Industries W-03326 45 Degree Street Elbow FTG x C (1/2 in / 45 Degree)

Product Description

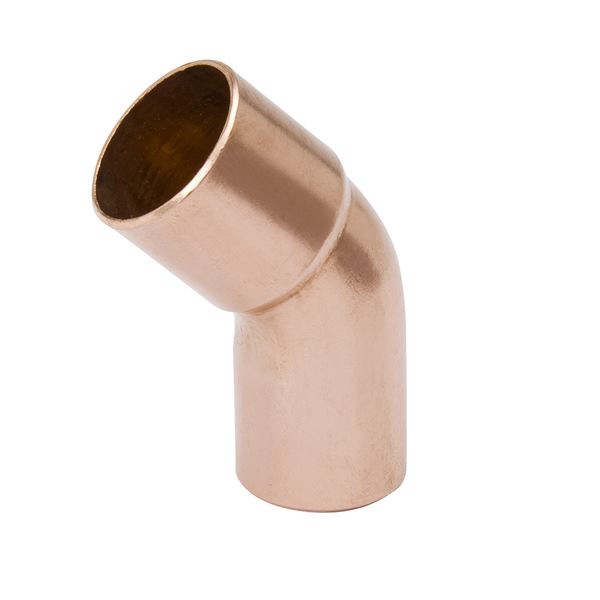

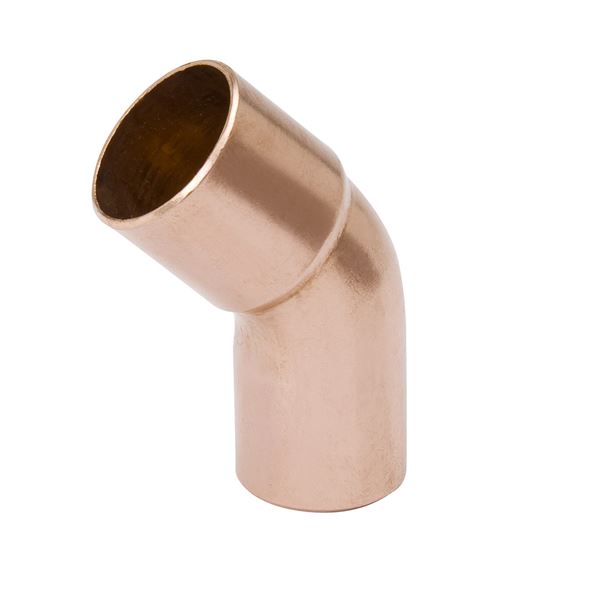

Mueller Industries W-03326 is a 45 degree street elbow (FTG x C) manufactured from wrot copper for above-ground potable water supply systems. The solder-joint fitting provides a male fitting to female cup connection for 1/2 inch nominal tubing with a 5/8 inch tube outside diameter and overall dimensions of 1.81 in x 1.25 in x 0.69 in. It meets applicable ASME standards and NSF 61G for pressure plumbing systems.

• 45 degree street elbow with fitting (male solder) to cup (female solder) end connections, nominal 1/2 in x 1/2 in
• Constructed of wrot copper with controlled cup depth and consistent wall thickness; tube outside diameter 5/8 in
• Meets ASME standards and NSF 61G; rated working pressure up to 700 psi and maximum temperature 250 deg F

Product Highlights

45 degree wrot copper street elbow, 1/2 in FTG x C, Series WE-505, meets ASME and NSF 61G

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: W-03326

Technical Specifications

• Brand: Mueller Industries
• Manufacturer Part Number: W-03326
• Series: WE-505
• Type: Street Elbow
• Bend Angle: 45 Deg
• Nominal Size: 1/2 in x 1/2 in
• End Type: Fitting (male solder) x Cup (female solder)
• Material: Wrot copper
• Tube Outside Diameter: 5/8 in
• Dimensions (L x W x H): 1.81 in x 1.25 in x 0.69 in
• Weight: 0.04 lb
• Working Pressure: 700 psi
• Maximum Temperature: 250 deg F
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Description: 1/2 FTG X C 45 ELL
• Alternate Description: 5/8 OD FTG X C 45 ELL
• UPC: 685768209577
