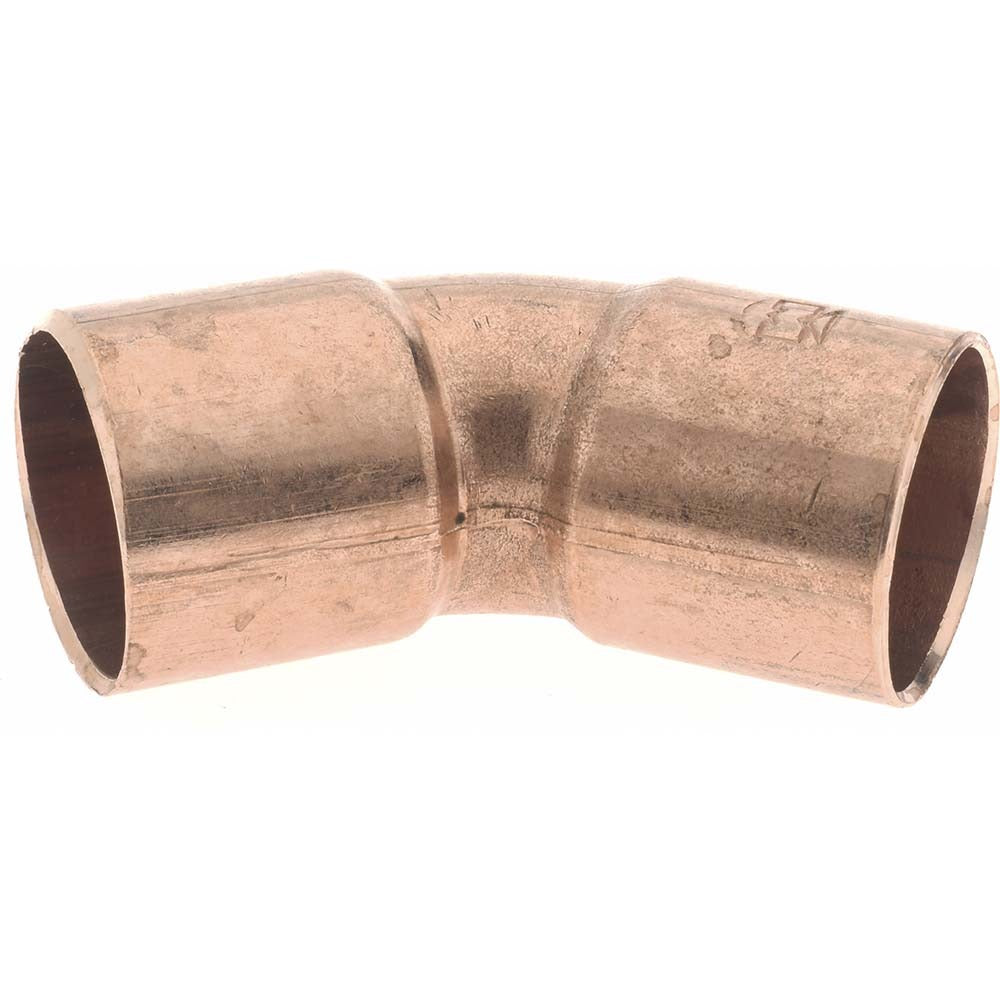

Mueller Industries W 03034 Copper 45 Elbow 3/4 in Cxc

Product Description

The MUELLER INDUSTRIES W 03034 is a wrot copper 45 degree elbow fitting designed for sweat-soldered copper piping systems. Sized at 3/4 inch with a cup-by-cup (C x C) end connection, this elbow redirects flow at a 45 degree angle in residential and commercial plumbing and hydronic heating lines. Wrot copper construction provides a dense, uniform grain structure that solders cleanly and holds pressure reliably over the service life of the system. Licensed plumbers and pipefitters install this fitting using standard torch-and-solder methods wherever a gradual directional change is needed in a copper run.

This fitting is suited for potable water supply lines, drain and vent rough-in work where copper is specified, radiant and hydronic heating loops, and general mechanical piping in both residential and light commercial applications. The 3/4 inch size is among the most common in domestic water distribution. Its NSF 61G listing makes it appropriate for use in drinking water systems where material certification is required by code or inspection.

Key Features

• 45 degree elbow geometry for gradual directional changes with lower friction loss than 90 degree fittings
• Wrot copper construction for dense grain structure and superior solderability
• Cup-by-cup (C x C) ends accept standard 3/4 inch copper tube for sweat connection
• Outside diameter of 7/8 inch matches standard 3/4 inch copper tube OD for proper fit-up
• NSF 61G listed for potable water contact
• Meets ASME B16.22 and multiple additional ASME dimensional and pressure standards

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3/4 inch copper tube systems using sweat (solder) joints per standard plumbing practice.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter using a torch, lead-free solder, and appropriate flux per local plumbing code and IFGC or IPC requirements where applicable. Shut off and drain the water supply completely before cutting into an existing line. Clean tube ends and fitting cups with emery cloth or a fitting brush, apply flux evenly, and heat the fitting body uniformly before feeding solder. Do not overheat wrot copper fittings, as excessive heat can oxidize the joint surface and result in a void or leak.
