Mueller Industries W-02847 90 Degree Elbow Long Radius Street 1 inches FTG x C (90 Deg)

Product Description

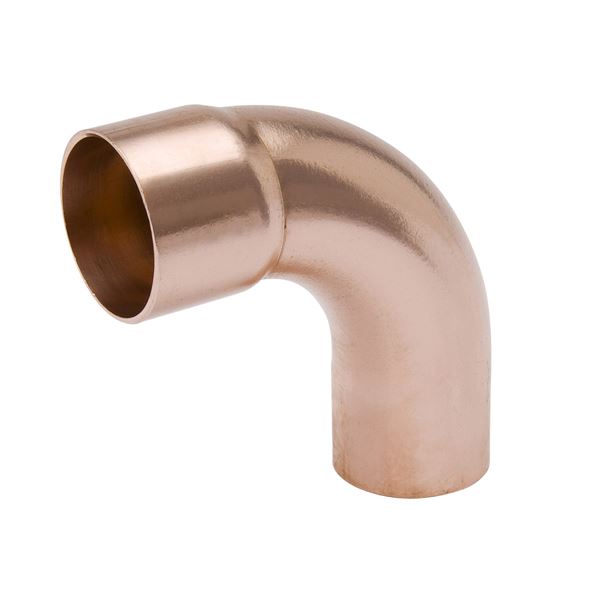

Mueller Industries W-02847 is a 90° long radius street elbow intended for above-ground potable water supply systems. This copper solder-joint fitting provides a 1 inch fitting by 1 inch cup connection (FTG x C) with a 1-1/8 inch tube outside diameter. The fitting meets ASME standards and NSF 61G, and is rated to 700 psi and 250°F with overall dimensions of 2.94 x 1.21 x 3.01 in.

• Long radius 90° street elbow with FTG x C solder-joint connections (1" x 1").
• Constructed of wrot copper; tube outside diameter 1-1/8 in; overall dimensions 2.94 x 1.21 x 3.01 in; weight 0.26 lb.
• Rated working pressure 700 psi and maximum temperature 250°F; manufactured to ASME standards and meets NSF 61G.

Product Highlights

90° long radius copper street elbow, 1" FTG x 1" C solder ends, 1-1/8" tube OD, rated 700 psi / 250°F, ASME/NSF 61G compliant.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: W-02847

Technical Specifications

• Brand: Mueller Industries
• Manufacturer Part Number: W-02847
• Series: WE-503L
• Model: WE-503L
• Type: Long Radius Street Elbow
• Bend Angle: 90 deg
• Nominal Size: 1 inch x 1 inch
• Connection Type: Fitting x Cup (FTG x C)
• End Type A: Fitting (male solder)
• End Type B: Cup (female solder)
• Tube Outside Diameter: 1-1/8 in
• Material: Wrot copper
• Working Pressure: 700 psi
• Maximum Temperature: 250 deg F
• Dimensions (L x W x H): 2.94 in x 3.01 in x 1.21 in
• Weight: 0.26 lb
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• UPC: 685768209386
• Manufacturer: Mueller Industries
